Scissor Lift Trolleys and Tables

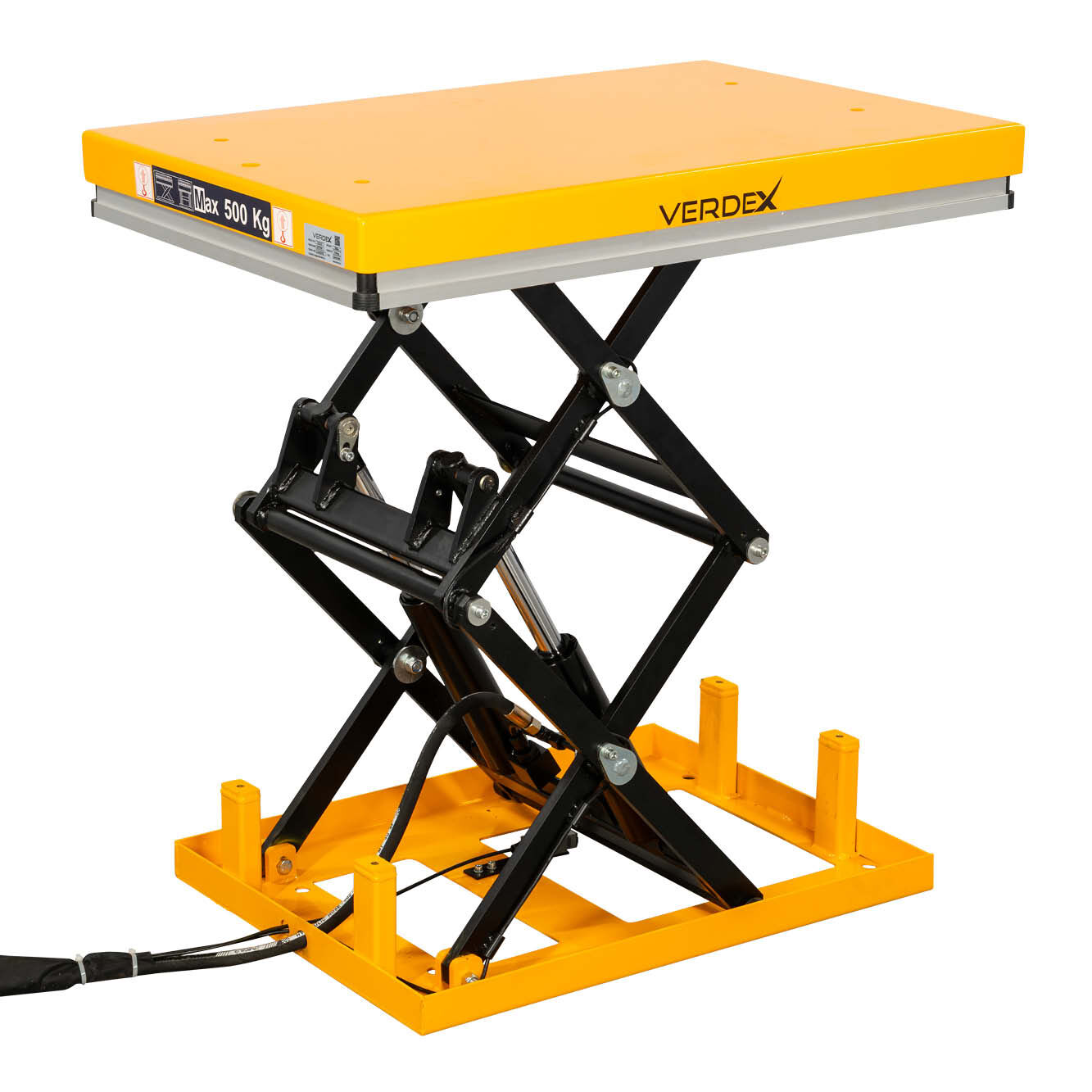

Small Platform Electric Scissor Lift Table


$3,485.00 Price excludes GST

SKU

M2110

Availability:

In StockIn Stock

Subtotal:

$3,485.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

Lift tables can be applied in many work places to increase productivity and safety. Loads can be elevated or lowered to optimum heights at the push of a button.

  • Heavy duty design and construction
  • High quality European power packs
  • Suitable for on floor applications or in floor pit applications
  • Self lubricating bushings on pivot points
  • Removable lifting eyes to facilitate installation and maintenance
  • 240V power supply
  • Upper platform fitted with aluminium safety bar preventing descent on contact with obstructions

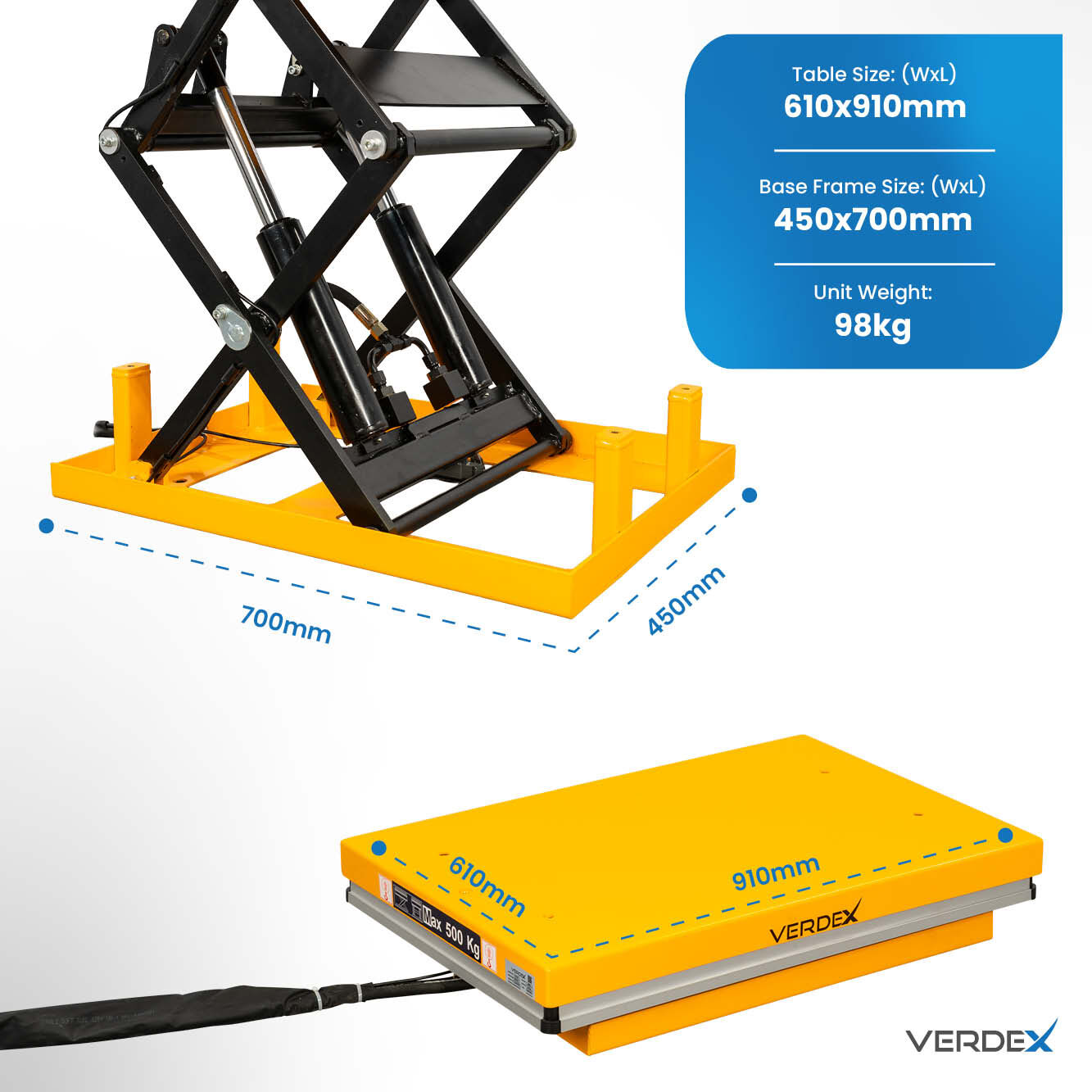

Specifications
  • Capacity: 500kg
  • Table Size: 610x910mm (WxL)
  • Base Frame Size: 450x700mm (WxL)
  • Min Height: 162mm
  • Max Height: 950mm
  • Raise Time: 17-22 seconds
  • Unit Weight: 98kg
  • Power Supply: 240 volt





Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Small Platform Electric Scissor Lift Table is designed to enhance productivity and safety in various workplaces by facilitating the elevation or lowering of loads with ease. Here are its key features and specifications:

Features:

Heavy-Duty Design: Constructed with robust materials and a sturdy frame, ensuring durability and reliability in demanding work environments.
European Power Packs: Equipped with high-quality power packs sourced from Europe, ensuring efficient and reliable operation.
Versatile Application: Suitable for both on-floor and in-floor pit applications, providing flexibility in installation options to suit different workplace layouts.
Self-Lubricating Bushings: Pivot points are equipped with self-lubricating bushings, reducing friction and maintenance requirements while ensuring smooth operation.
Removable Lifting Eyes: Facilitate installation and maintenance by allowing easy removal when needed.
240V Power Supply: Operates on a standard 240-volt power supply, ensuring compatibility with most electrical systems.
Aluminium Safety Bar: The upper platform is equipped with an aluminium safety bar, preventing descent in case of contact with obstructions, enhancing safety during operation.
Specifications:

  • Capacity: 500kg, providing ample capacity for lifting various loads in industrial and commercial settings.
  • Table Size: 610x910mm (Width x Length), offering a spacious platform for accommodating different types of loads.
  • Base Frame Size: 450x700mm (Width x Length), providing stability and support for the lifting mechanism.
  • Minimum Height: 162mm, allowing for easy loading and unloading of materials from ground level.
  • Maximum Height: 950mm, enabling the platform to reach elevated positions for efficient working at different heights.
  • Raise Time: 17-22 seconds, ensuring quick and efficient lifting of loads to the desired height.
  • Unit Weight: 98kg, making it manageable for installation and relocation while maintaining stability during operation.

Overall, the Small Platform Electric Scissor Lift Table offers a reliable and efficient solution for lifting applications, enhancing productivity and safety in various work environments. To view the full range of Scissor Lift Trolleys/Tables that MHA sell, click here.
