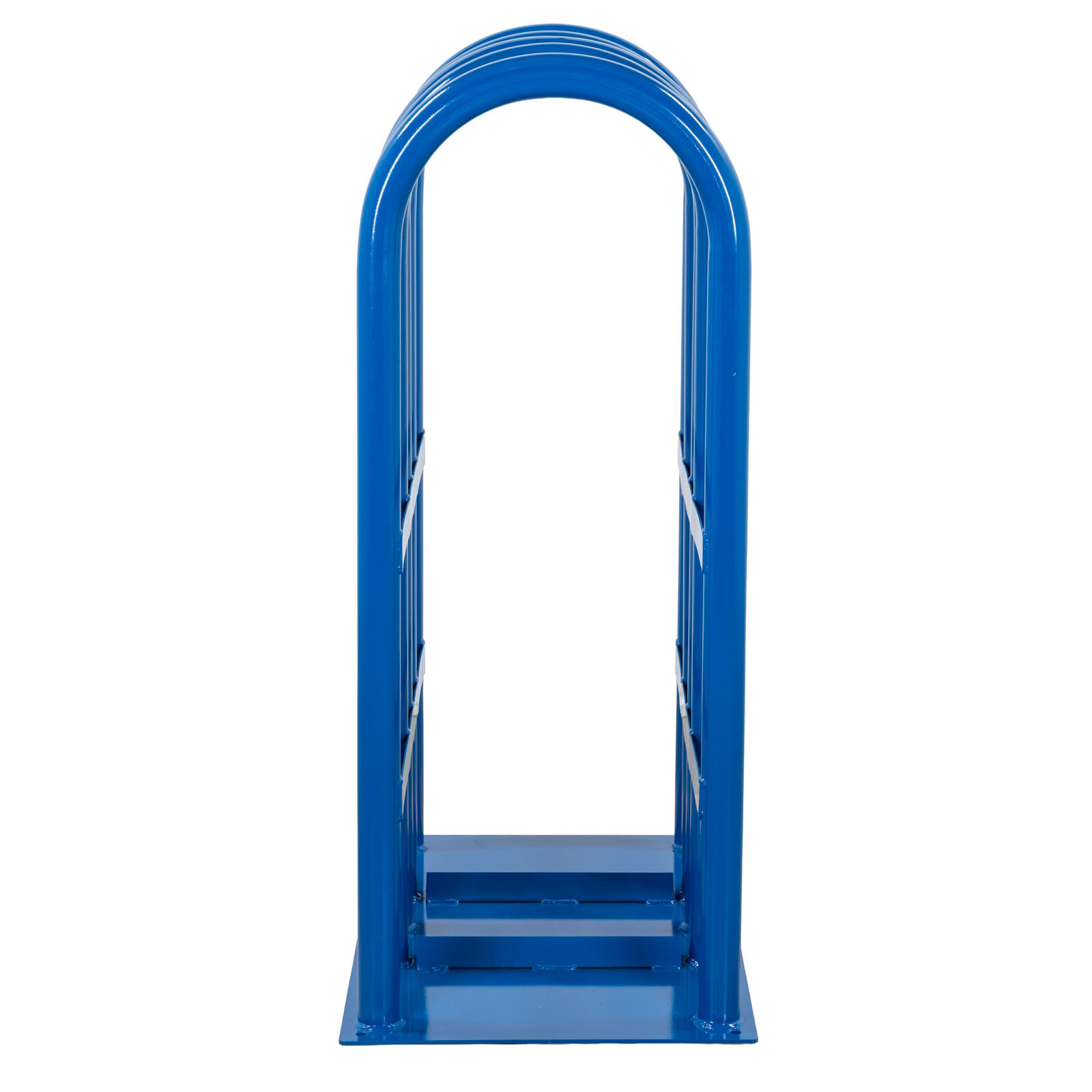

Tyre Inflation Enclosure

Product Code: STBC12

$1,100.00 Price excludes GST

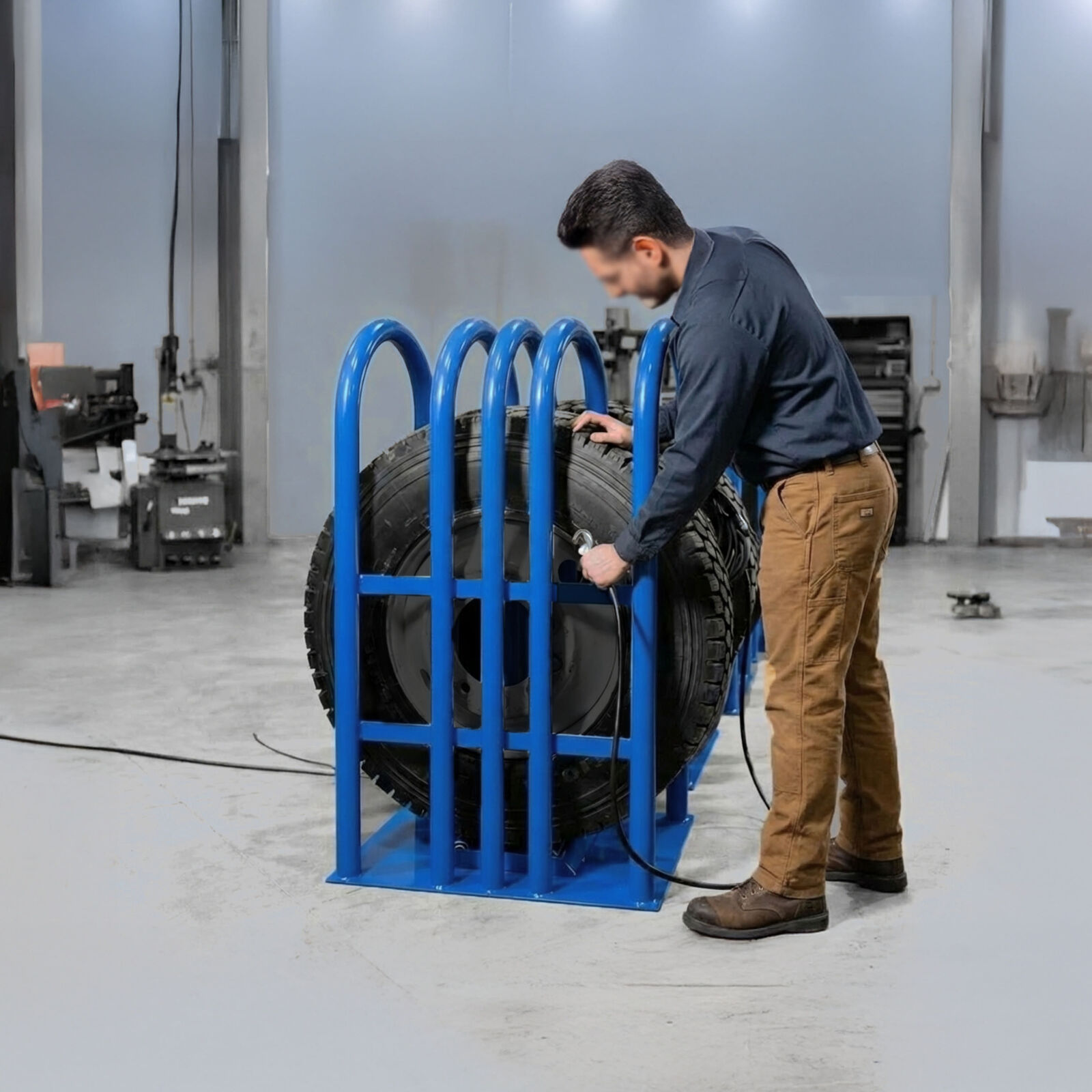

The STBC12 Tyre Inflation Enclosure is designed for the safe inflation of tyres.  Working with tyres, particularly truck and machinery tyres, is dangerous because of their bulk, weight, pressurised air or gas and presence of combustible material. The uncontrolled release of stored energy can have serious, even fatal consequences. When a tyre bursts or assemblies release, they can be propelled long distance at great speed. This 5-bar heavy duty enclosure is constructed to provide protection against the risk of injury to workers and damage to plant and structures caused by a tyre blast.

FEATURES:

  • Provides protection for personnel when inflating tyres
  • Prevents risk of injury and damage caused by tyre blast
  • Suits tyres sizes up to 1150mm diameter by 400mm wide
  • Heavy duty construction designed to withstand impact and force
  • Locating guides on base hold wheel in position
  • Five 60mm tube bars with reduced spacing in impact zone for strength
  • Finite Element Analysis confirms design is engineered to withstand the most severe blast
  • Designed and certified to relevant Australian standards
  • Enamel paint finish
  • Maximum Tyre Size (DxW): 1150x400mm
  • Internal  Dimensions (WxH): 404x1290mm
  • Overall Dimensions (LxWxH): 950x580x1350mm
  • Unit Weight: 85kg




Please contact us for pricing on bulk quantity purchases.
Have a Question?
Download PDF Brochure
Add to Favourites


Rated Capacity (RC)
When used as
Fully Retracted
(LC @ 2405mm)
Middle Position
(LC @ 3165mm)
Fully Extended
(LC @ 3925mm)
Forklift Attachment 3500kg 1500kg 750kg
Lifting Beam 4500kg 2500kg 1300kg
Spreader Beam 9000kg 7200kg 5600kg



Product Code STBC12
Brand Liftex
Shipping Weight 95.0000 kg
Unit Of Measure ea
