Safety Barriers & Bollards

Pedestrian Handrail Barrier System


View Pricing & Order

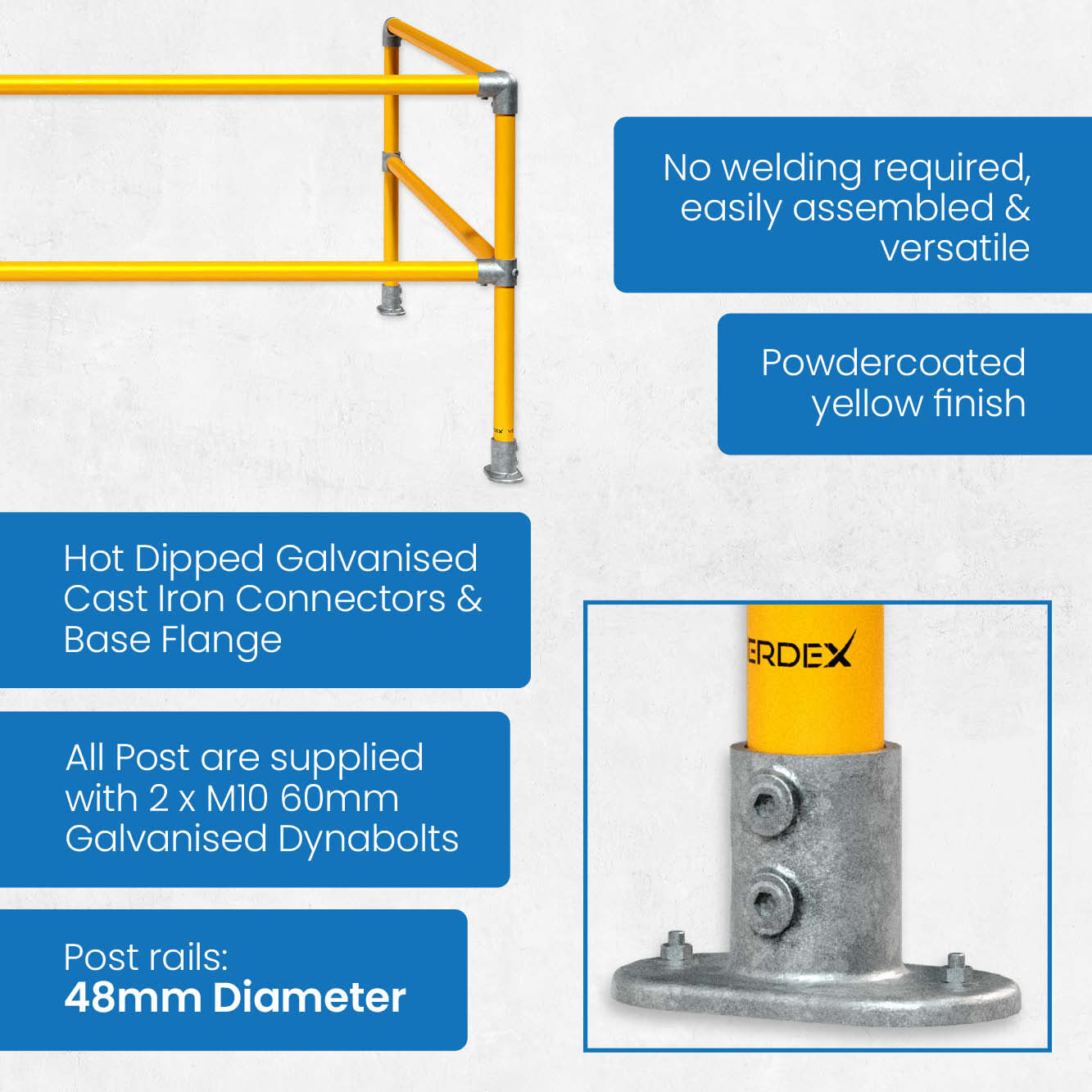

Our modular pedestrian barrier system is very easy to install with 2 metre long rails to form a continuous barrier or can be cut to your desired length. The 950mm high posts simply lock together with pre-fitted couplings.


Our system uses rounded corners which allow you to have a continuous handrail along winding passageways and around corners.

  • No welding required, easily assembled and versatile
  • Made to Australian Standards AS 1428.1:2021 and AS 1657:2018
  • Powder coated yellow Post and Rail
  • Hot Dipped Galvanised Cast Iron Connectors and Base Flange
  • Post Rails: 48 (D) x 950mm
  • Horizontal Rails: 48 (D) x 2000mm
  • All Post are supplied with 2 x M10 60mm Galvanised Dynabolts



Please Note: Set Screw and Allen Key are supplied as standard

Sale Ends in
Download PDF Download PDF Brochure Ask a QuestionAsk a Question

Product Description

Our modular pedestrian barrier system is very easy to install with 2 metre long rails to form a continuous barrier or can be cut to your desired length. The 950mm high posts simply lock together with pre-fitted couplings.


Our system uses rounded corners which allow you to have a continuous handrail along winding passageways and around corners.

  • No welding required, easily assembled and versatile
  • Made to Australian Standards AS 1428.1:2021 and AS 1657:2018
  • Powder coated yellow Post and Rail
  • Hot Dipped Galvanised Cast Iron Connectors and Base Flange
  • Post Rails: 48 (D) x 950mm
  • Horizontal Rails: 48 (D) x 2000mm
  • All Post are supplied with 2 x M10 60mm Galvanised Dynabolts



Please Note: Set Screw and Allen Key are supplied as standard

View More Specifications

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image Description Code Price Each Order Quantity
Availability
2M Pedestrian Handrail (sold as a pair)

2M Pedestrian Handrail (sold as a pair)

Product Code: M7470

  • Sold as a pair
  • Powder coated yellow rail
  • Made to Australian Standards AS 1428.1:2021 and AS 1657:2018
  • Size: 48 (D) x 2000mm
  • Unit Weight: 14kg
2M Pedestrian Handrail (sold as a pair) M7470
View Details

$179.00

$157.00 / Pair

SAVE $22.00
-
+
In StockIn Stock
In StockIn Stock
Pedestrian Handrail (End Post)

Pedestrian Handrail (End Post)

Product Code: M7471

  • Powder coated yellow Post and Rail
  • Hot Dipped Galvanised Cast Iron Connectors and Base Flange
  • All Post are supplied with 2 x M10 60mm Galvanised Dynabolts
  • Made to Australian Standards AS 1428.1:2021 and AS 1657:2018
  • Post Rails: 48 (D) x 950mm
  • Unit Weight: 5.5kg
Pedestrian Handrail (End Post) M7471
View Details

$170.00

$150.00

SAVE $20.00
-
+
In StockIn Stock
In StockIn Stock
Pedestrian Handrail (Centre Post)

Pedestrian Handrail (Centre Post)

Product Code: M7472

  • Centre Post
  • Powder coated yellow Post and Rail
  • Hot Dipped Galvanised Cast Iron Connectors and Base Flange
  • All Post are supplied with 2 x M10 60mm Galvanised Dynabolts
  • Made to Australian Standards AS 1428.1:2021 and AS 1657:2018
  • Size: 48 (D) x 950mm
  • Unit Weight: 6kg
Pedestrian Handrail (Centre Post) M7472
View Details

$182.00

$160.00

SAVE $22.00
-
+
In StockIn Stock
In StockIn Stock
Pedestrian Handrail (Corner Post)

Pedestrian Handrail (Corner Post)

Product Code: M7473

  • Corner Post
  • Powder coated yellow Post and Rail
  • Hot Dipped Galvanised Cast Iron Connectors and Base Flange
  • All Post are supplied with 2 x M10 60mm Galvanised Dynabolts
  • Made to Australian Standards AS 1428.1:2021 and AS 1657:2018
  • Size: 48 (D) x 950mm
  • Unit Weight: 6kg
Pedestrian Handrail (Corner Post) M7473
View Details

$194.00

$172.00

SAVE $22.00
-
+
In StockIn Stock
In StockIn Stock
4 Way Center Cross Coupling Set (sold as a pair of 2)

4 Way Center Cross Coupling Set (sold as a pair of 2)

Product Code: M7474

  • 4 Way Center Cross Coupling Set (sold as a pair of 2)
  • Hot Dipped Galvanised Cast Iron
4 Way Center Cross Coupling Set (sold as a pair of 2) M7474
View Details

$40.00

$35.00 / Pair

SAVE $5.00
-
+
In StockIn Stock
In StockIn Stock
Side Outlet Tee Set (sold as a pair of 2)

Side Outlet Tee Set (sold as a pair of 2)

Product Code: M7475

  • Side Outlet Tee Set (sold as a pair of 2)
  • Hot Dipped Galvanised Cast Iron
Side Outlet Tee Set (sold as a pair of 2) M7475
View Details

$35.00

$30.00 / Pair

SAVE $5.00
-
+
In StockIn Stock
In StockIn Stock
Adjustable Safety Swing Gate

Adjustable Safety Swing Gate

Product Code: M7476K

  • Powder Coat Finish
  • Colour: Yellow
  • Suits ball fence & Pedestrian Handrail System
  • Gate swings inward
  • Fits left and right hand openings, inwards opening
  • Built-in gate stopclosing hinges
  • Heavy Duty Self-closing hinges
  • Adjustable to suit 780-1330mm openings
  • Overall Length: 890 - 1440mm
  • Overall Size (WxD): 440x50mm
  • Unit Weight: 11kg
Adjustable Safety Swing Gate M7476K
View Details

$395.00

-
+
In StockIn Stock
In StockIn Stock
Adjustable Safety Gate Sign Holder

Adjustable Safety Gate Sign Holder

Product Code: M7477

  • Powder Coat Finish
  • Colour: Yellow
  • Sign Holder just straddles the M7476K Gate and is secured by 2 x hex head bolts
  • Hardware for M7477 is provided
  • M7477 comes supplied with 2 x Vinyl Stickers (400x300mm)
  • 1x 'NO ENTRY' and 1 x 'BEWARE OF VEHICLES' Stickers
  • Overall Size (HxWxD): 512x425x53mm
  • Unit Weight: 4.25kg
Adjustable Safety Gate Sign Holder M7477
View Details

$72.00

-
+
In StockIn Stock
In StockIn Stock

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST
Product Dimensions / Specifications

Our modular pedestrian barrier system is very easy to install with 2 metre long rails to form a continuous barrier or can be cut to your desired length. The 950mm high posts simply lock together with pre-fitted couplings.


Our system uses rounded corners which allow you to have a continuous handrail along winding passageways and around corners.

  • No welding required, easily assembled and versatile
  • Made to Australian Standards AS 1428.1:2021 and AS 1657:2018
  • Powder coated yellow Post and Rail
  • Hot Dipped Galvanised Cast Iron Connectors and Base Flange
  • Post Rails: 48 (D) x 950mm
  • Horizontal Rails: 48 (D) x 2000mm
  • All Post are supplied with 2 x M10 60mm Galvanised Dynabolts



Please Note: Set Screw and Allen Key are supplied as standard


Code
Description
Unit Weight (kg)
M7470   2M Pedestrian Handrail (sold as a pair) 14
M7471   Pedestrian Handrail (End Post) 5.5
M7472   Pedestrian Handrail (Centre Post) 6
M7473   Pedestrian Handrail (Corner Post) 6
M7474   4 way Center Cross Coupling Set (sold as a pair of 2) 2.7
M7475   Side Outlet Tee Set (sold as a pair of 2) 2

Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document


Pedestrian Handrail Barrier System is designed to provide a versatile and easy-to-install solution for creating pedestrian barriers in various settings. Here's an overview of its features and specifications:

  • Features:
  • Modular Design: The system consists of 2-meter-long rails that can be connected to form a continuous barrier or cut to desired lengths to suit specific requirements.
  • Easy Installation: Posts, rails, and connectors are designed for easy assembly without the need for welding, allowing for quick installation.
  • Rounded Corners: Rounded corners enable the creation of a continuous handrail along winding passageways and around corners, ensuring safety and aesthetics.
  • Compliance: Manufactured to comply with Australian Standards AS 1428.1:2021 and AS 1657:2018, ensuring adherence to safety regulations.
  • Powder Coated Finish: Yellow powder-coated finish provides high visibility and durability, enhancing safety and longevity of the barrier system.
  • Galvanized Components: Cast iron connectors and base flanges are hot-dipped galvanized for corrosion resistance and long-term durability.
  • Post and Rail Dimensions: Posts are 48mm (D) x 950mm high, and horizontal rails are 48mm (D) x 2000mm long.
  • Secure Installation: Each post is supplied with 2 x M10 60mm galvanized Dynabolts for secure attachment to the ground.
  • Specifications:
  • Post Height: 950mm
  • Post and Rail Material: Powder-coated yellow steel
  • Connector and Base Flange Material: Hot-dipped galvanized cast iron
  • Rail Dimensions: 48mm (D) x 2000mm (L)
  • Post Dimensions: 48mm (D) x 950mm (H)
  • Installation: No welding required; assembly with pre-fitted couplings
  • Compliance: Manufactured to Australian Standards AS 1428.1:2021 and AS 1657:2018
  • Finish: Powder-coated yellow for visibility and durability

The Pedestrian Handrail Barrier System offers a robust and compliant solution for creating safe pedestrian barriers in various environments, including walkways, corridors, and public spaces. Its modular design, easy installation, and compliance with safety standards make it an ideal choice for enhancing safety and traffic management. View the full range of Safety Barriers and Bollards here to find the best safety solution for you.
