Scissor Lift Trolleys and Tables

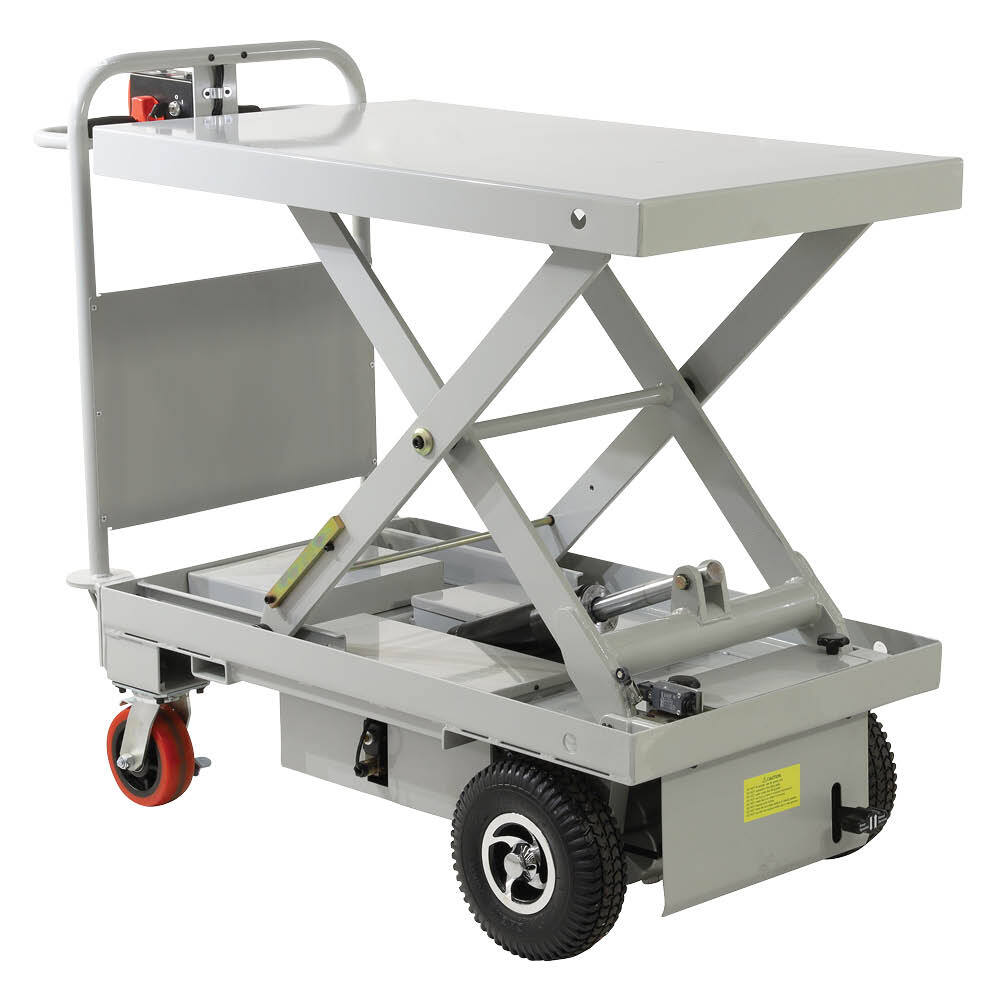

Self Propelled Electric Scissor Lift Trolley (single scissor)

$4,465.00 Price excludes GST




In StockIn Stock



*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant

Product Dimensions / Specifications
  • Powered Lift and Drive makes this unit ideal for a wide range of applications, including hospitals and libraries
  • Charging unit supplied (as pictured)

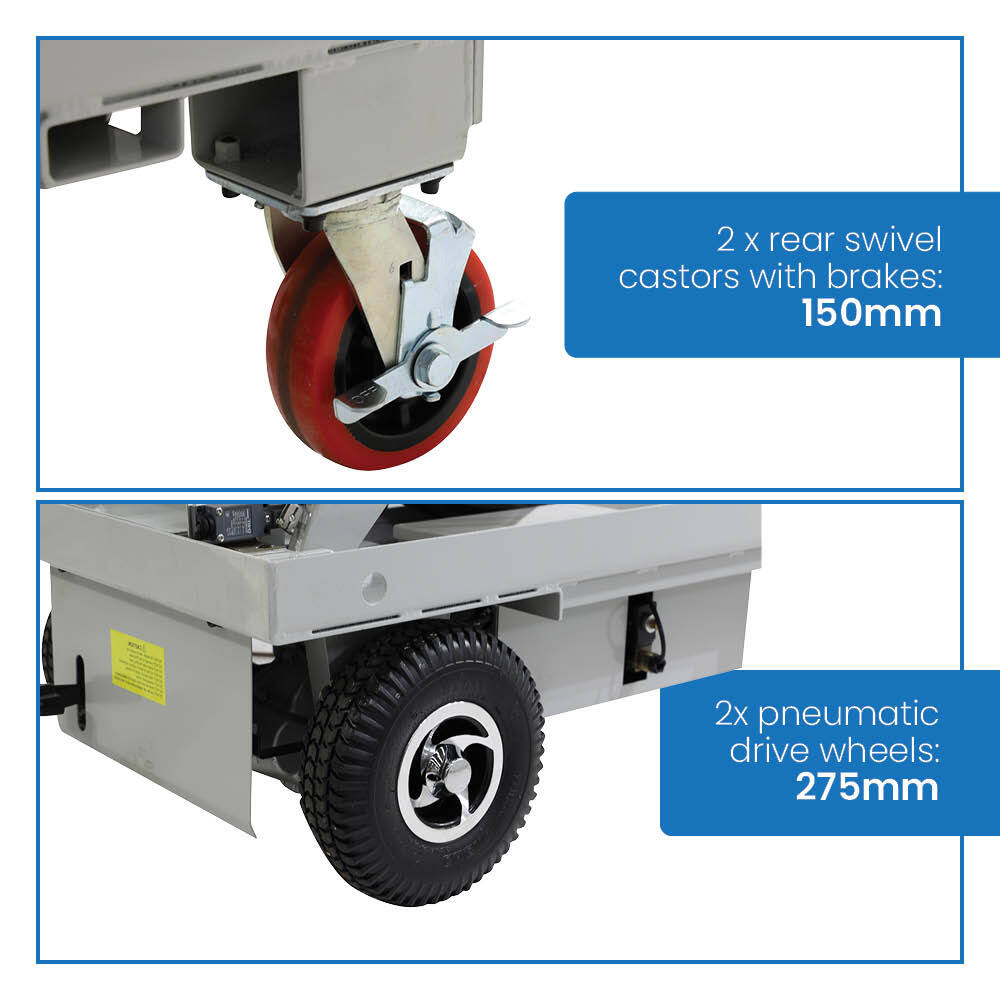

  • 2 x rear swivel castors with brakes
  • 2 x pneumatic drive wheels
  • Batteries: 2x12V 33Ah
  • Controller: 70A
  • Motor (Driving): 400W
  • Motor (Lifting): 400W
  • Lifting Time: 17 seconds
  • 45mm clearance
  • Max climbing capability: 12 degrees
  • Load Capacity: 400kg
  • Rear Castors: 150mm
  • Front Wheels: 275mm
  • Table Size: 1000x600mm
  • Lifting Range: 460-900mm
  • Overall Size (LxWxH): 1240x600x1100mm
  • Unit Weight: 180kg

Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.

Click here to download a PDF Brochure Click here to fill in the form to request your required document

The Self-Propelled Electric Scissor Lift Trolley (single scissor) offers convenient powered lift and drive functionalities, making it suitable for a wide range of applications, including hospitals and libraries. Here are its key features:

Powered Lift and Drive: This trolley features both powered lift and drive capabilities, allowing for effortless maneuvering and elevation of loads. The electrically powered drive system enables smooth movement, while the powered lift mechanism ensures precise positioning of the load.

Charging Unit: Supplied with a charging unit, the trolley ensures convenient and reliable power supply for prolonged operation. The charging unit allows for quick and easy recharging of the batteries, ensuring minimal downtime.

Swivel Castors with Brakes: The trolley is equipped with two rear swivel castors with brakes, providing stability and secure positioning during operation. The swivel castors enable smooth movement in all directions, while the brakes ensure stability when stationary.

Pneumatic Drive Wheels: Featuring two pneumatic drive wheels, the trolley offers excellent traction and maneuverability, even on uneven surfaces. The pneumatic wheels absorb shocks and vibrations, enhancing overall stability and comfort during operation.

Battery System: Powered by two 12V 33Ah batteries, the trolley delivers sufficient energy for extended use. The battery system provides reliable power for both the driving and lifting motors, ensuring consistent performance.

Controller: Equipped with a 70A controller, the trolley offers precise control over the electric drive and lift systems, allowing for smooth and efficient operation.

Lifting Capacity and Range: With a load capacity of 400kg, the trolley can safely lift heavy loads. It offers a lifting range from 460mm to 900mm, accommodating various load sizes and heights.

Clearance and Climbing Capability: The trolley provides a 45mm clearance, allowing it to navigate obstacles with ease. It also has a maximum climbing capability of 12 degrees, enabling it to ascend ramps and inclines smoothly.

Table Size: The table size measures 1000x600mm, providing ample space for placing and maneuvering various items during transport.

Overall Size: The overall dimensions of the trolley are 1240x600x1100mm, providing a compact footprint for easy maneuverability in confined spaces.

Unit Weight: Weighing 180kg, the trolley strikes a balance between durability and maneuverability, ensuring stability during operation while remaining manageable for transportation and storage.

Overall, the Self-Propelled Electric Scissor Lift Trolley (single scissor) is a versatile and efficient solution for handling heavy loads in various settings, offering ease of operation, safety, and reliability. View all of Scissoe Lift Trolley options here, to find the best solution for you.
