Pallet Wrapping & Packaging Machinery

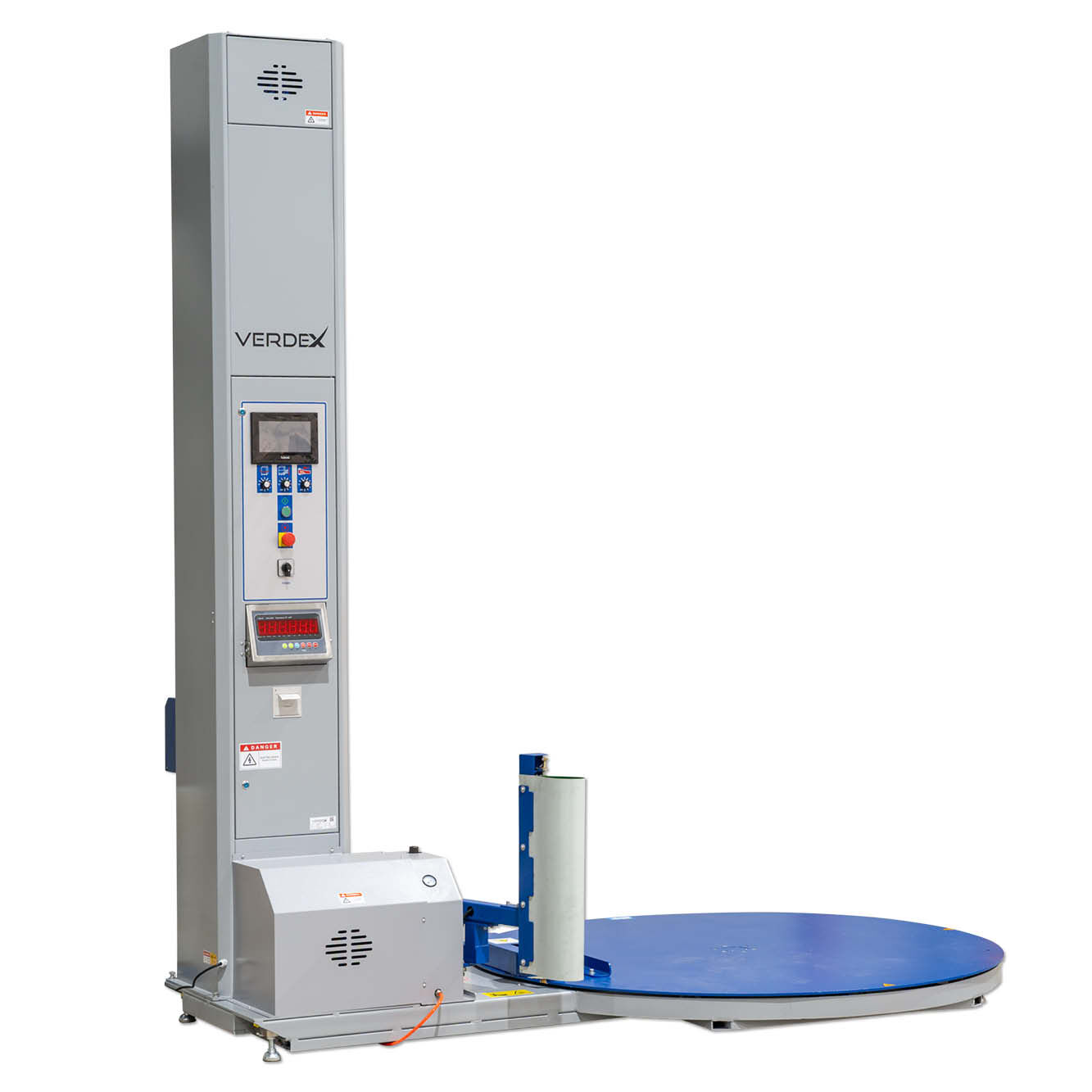

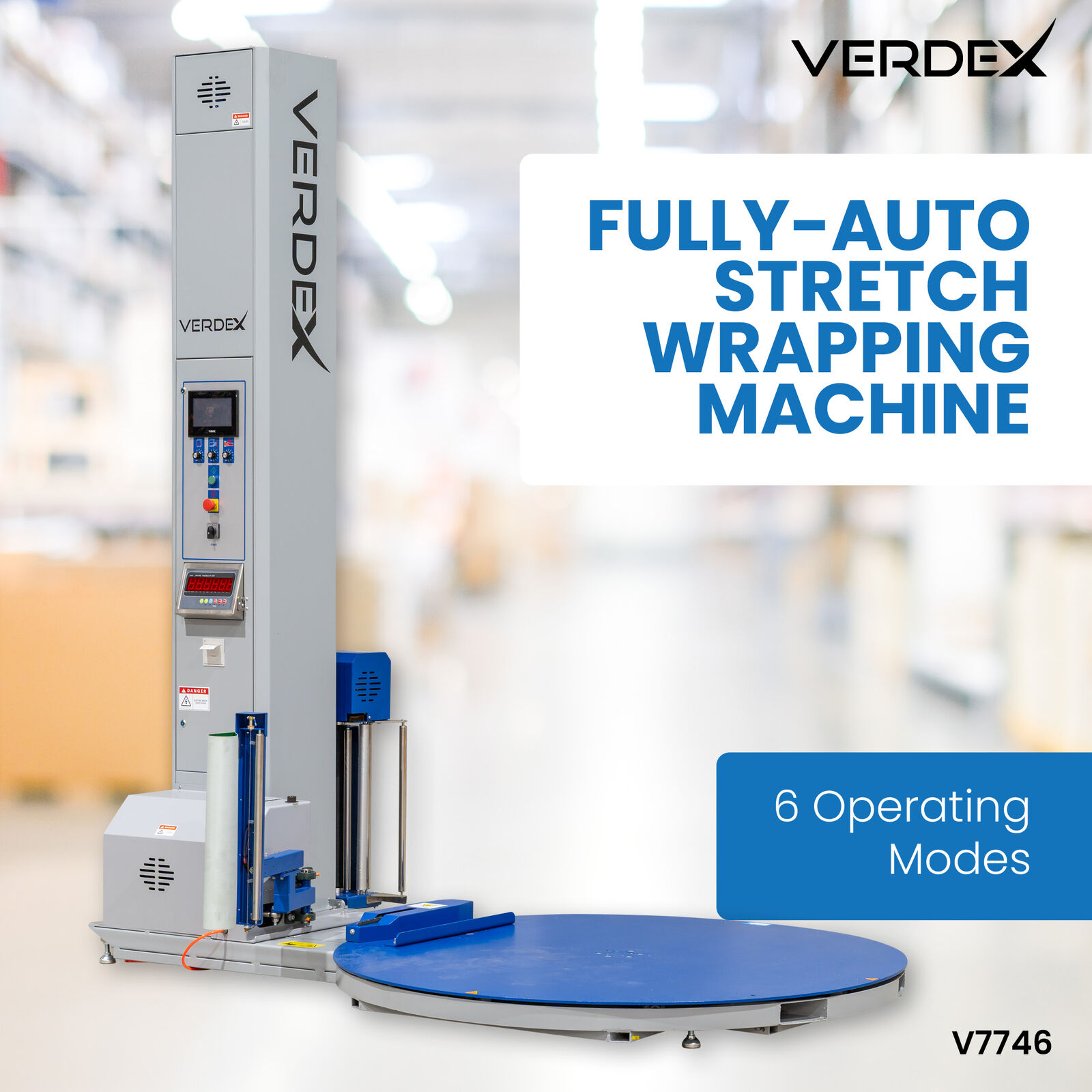

Fully-Auto Stretch Wrapping Machine


$38,750.00 Price excludes GST

SKU

V7746

Availability:

In StockIn Stock

Subtotal:

$38,750.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

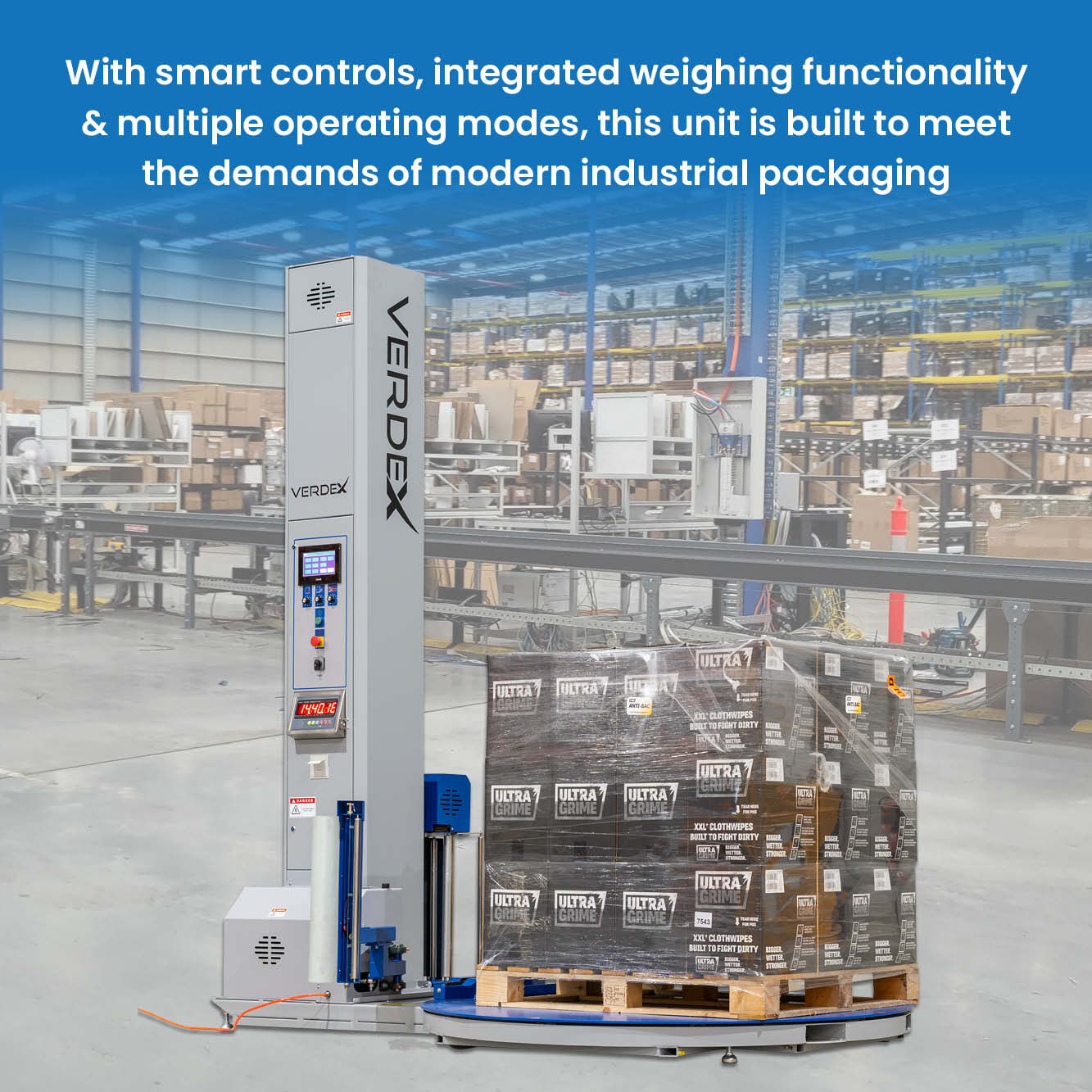

Optimise your pallet wrapping workflow with the Fully-Auto Stretch Wrapping Machine, designed for reliable, high-performance operation. Equipped with advanced controls, built-in weighing capabilities, and versatile operating modes, it delivers consistent results across demanding industrial applications.

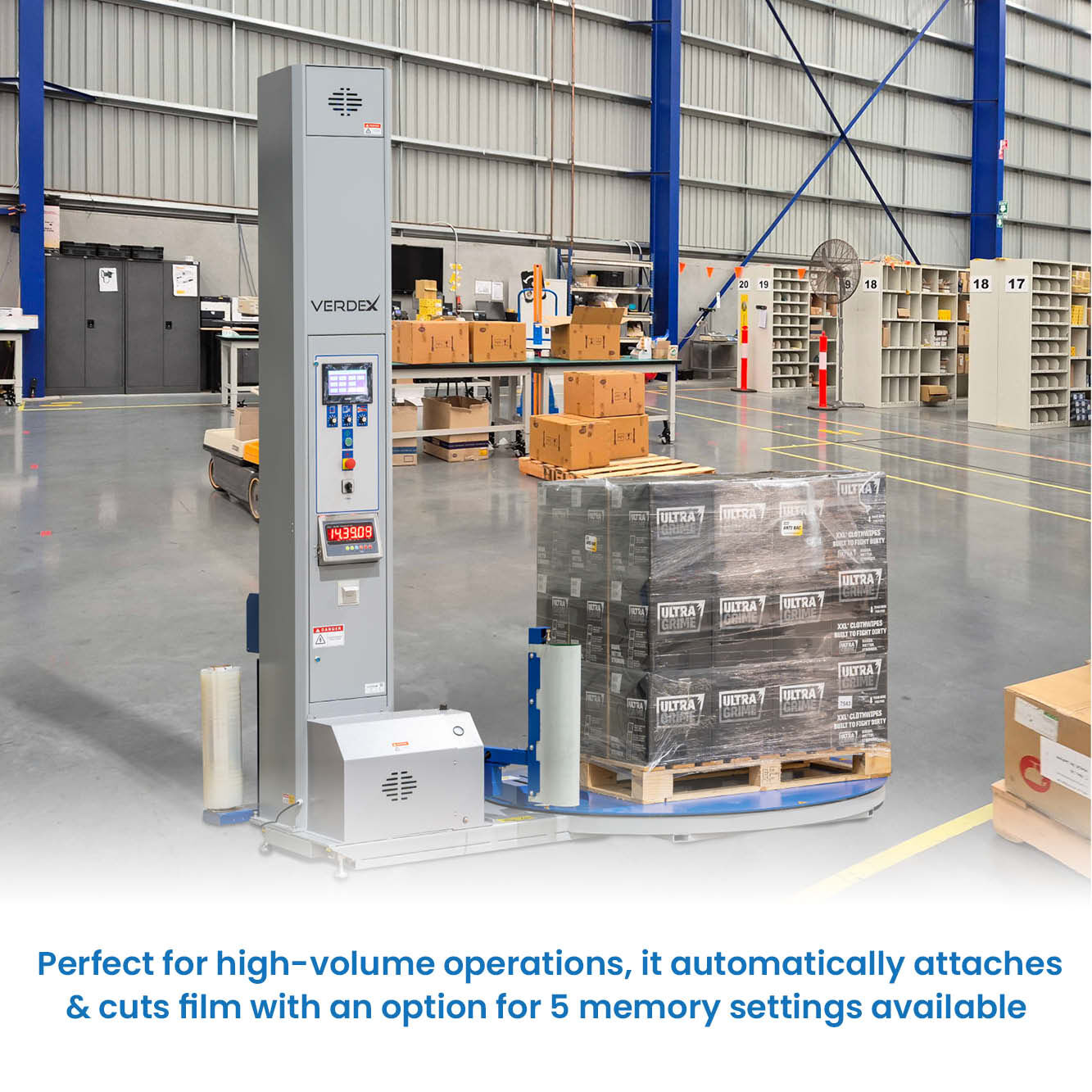

  • Automatically attach & cut film

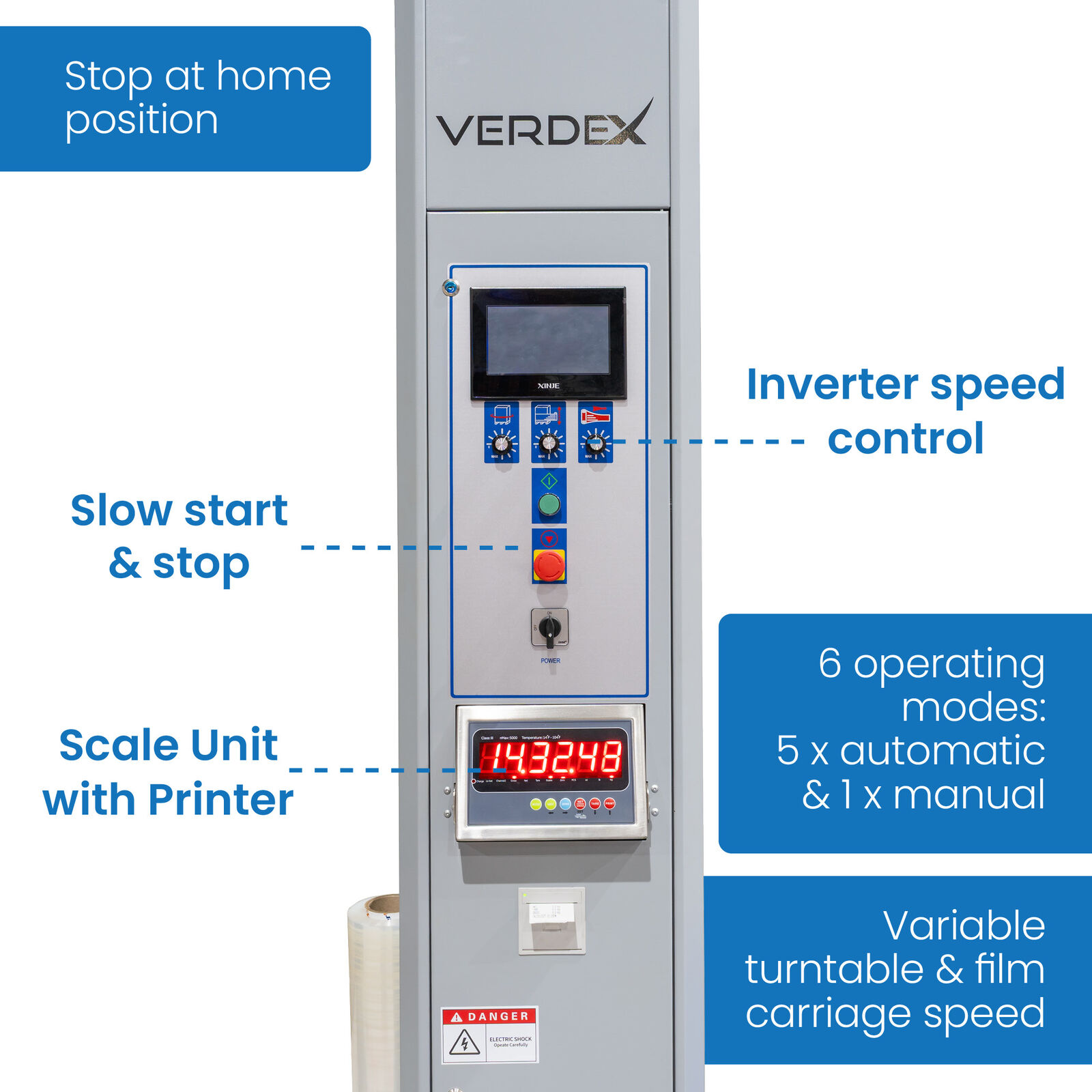

  • PLC control+key board control
  • Features an electronic weighing scale with 4 x gravity sensors installed at each corner of the turntable
  • Digital display scale unit with a weighing accuracy of ±0.05kg
  • Scale unit printer
  • 6 operating modes: 5 x automatic modes & 1 x manual mode
  • Supplied with a ramp as standard
  • Inverter speed control
  • Slow start & stop
  • Stop at home position
  • Auto detect pallet height
  • Front & rear forklift access
  • Variable turntable & film carriage speed
  • Configurable shrink wrap setting for top, middle & bottom of pallet - 5 memory settings available

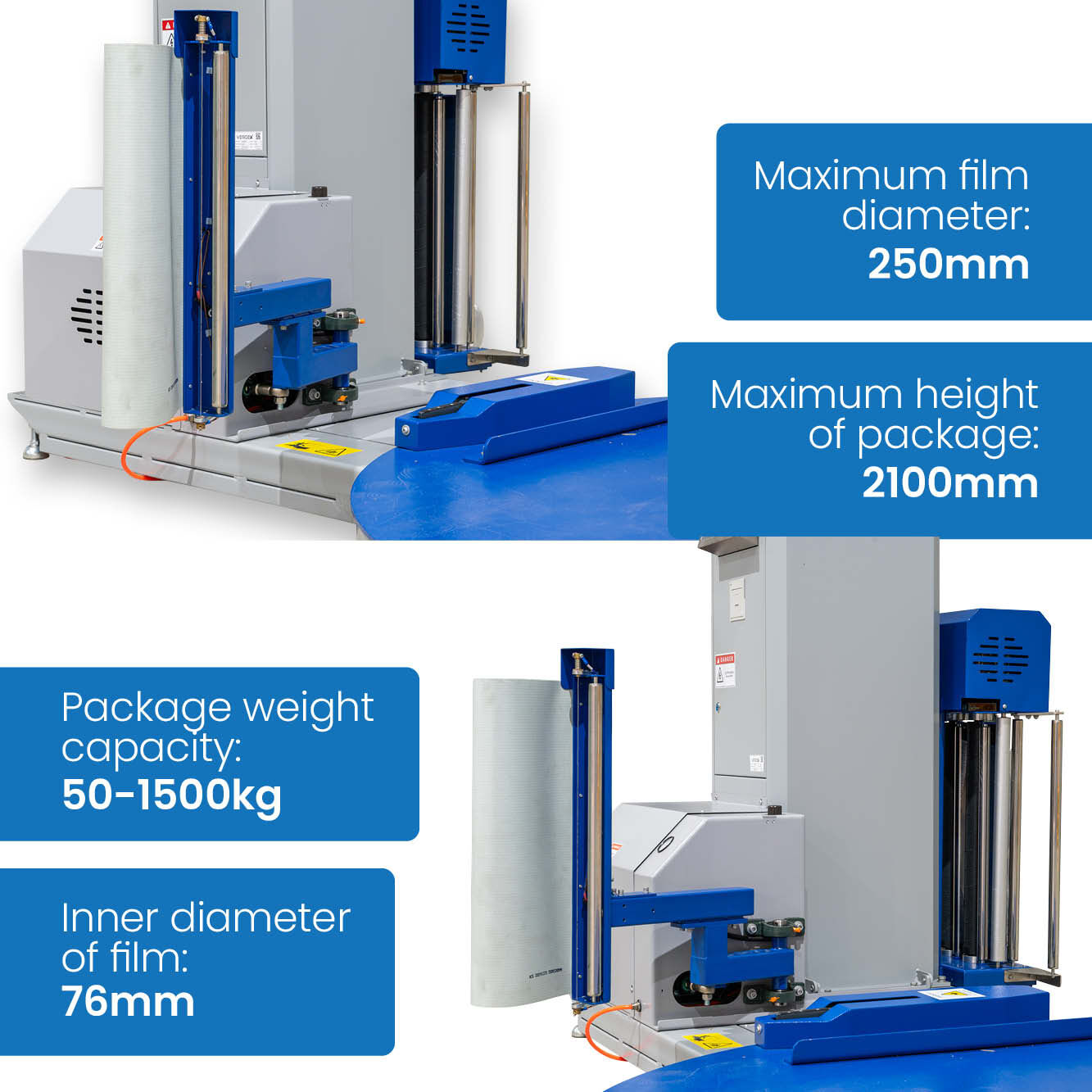

  • Package weight capacity: 50-1500kg

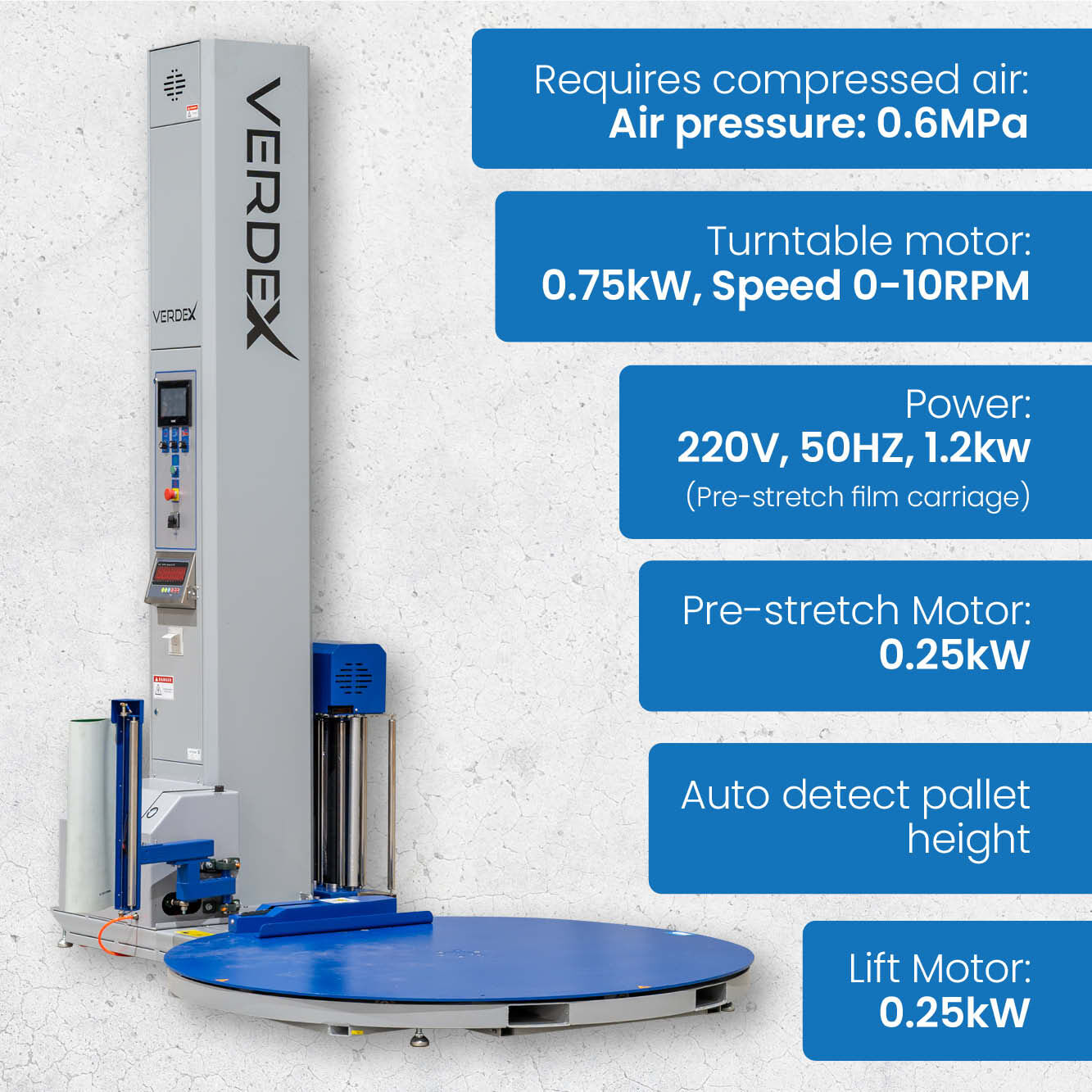

  • Power: 220V, 50HZ, 1.2kw (Pre-stretch film carriage)
  • Lift motor: 0.25kW
  • Pre-stretch motor: 0.25kW
  • Turntable motor: 0.75kW, Speed 0-10 RPM
  • Requires compressed air, air pressure: 0.6MPa

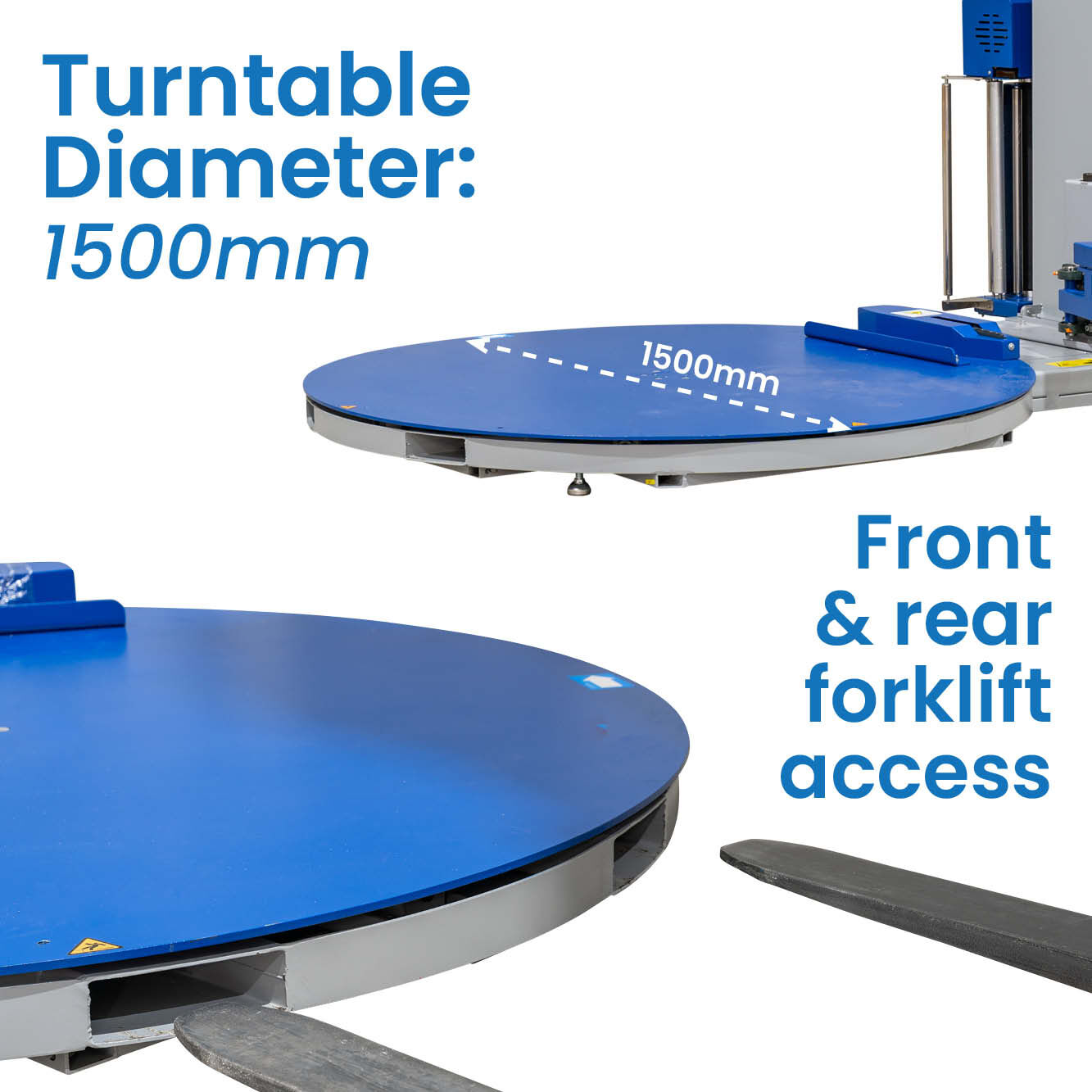

  • Turntable Diameter: 1500mm
  • Max height of package: 2100mm
  • Maximum film diameter: 250mm
  • Inner diameter of film: 76mm
  • Unit Weight: 550kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

Enhance Efficiency with the Fully-Auto Stretch Wrapping Machine

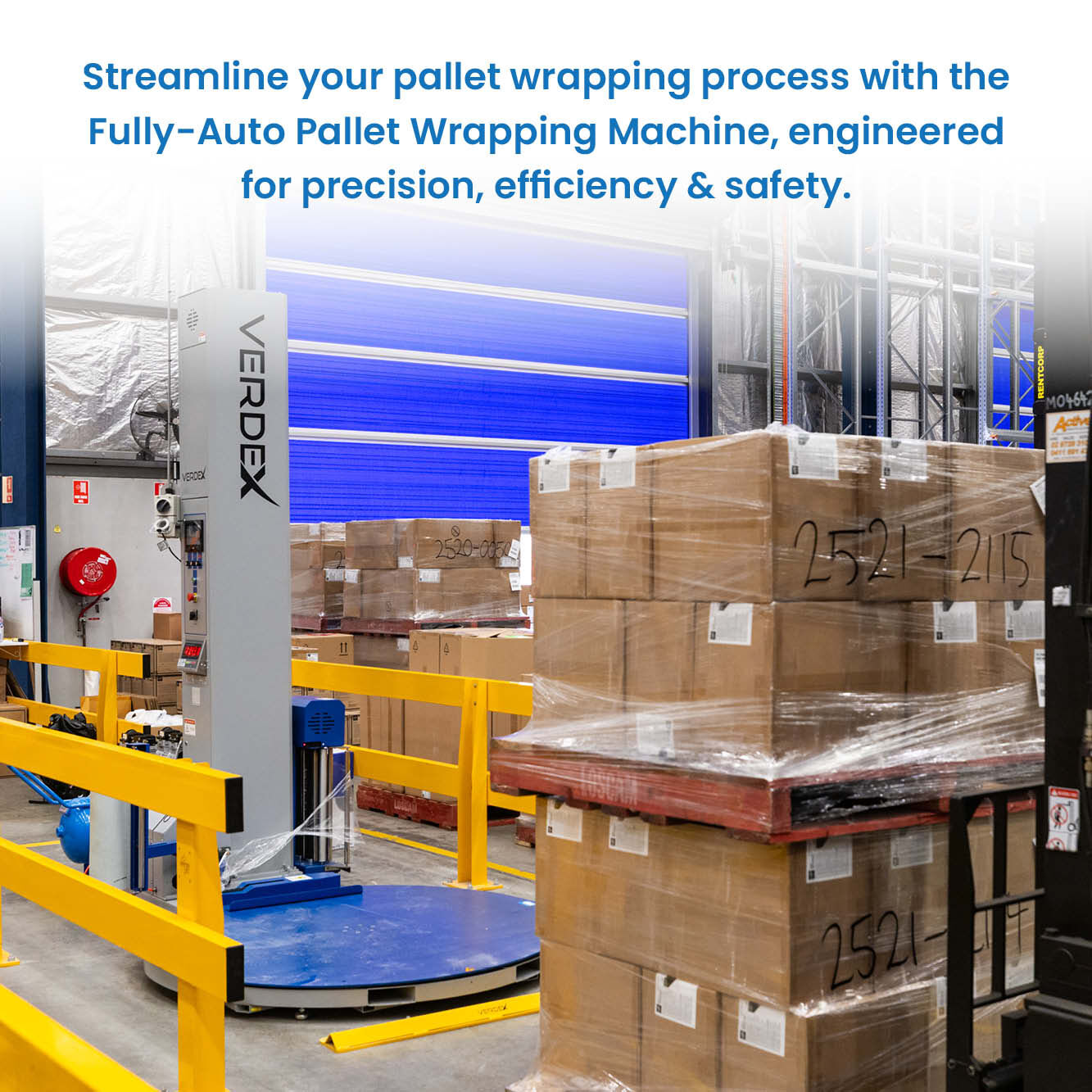

The Fully-Auto Stretch Wrapping Machine is engineered to simplify and speed up pallet wrapping, delivering reliable, precise performance for industrial packaging needs. Its advanced control system and built-in weighing scale help ensure each load is wrapped securely and measured accurately, making it ideal for busy packaging environments.

This machine automates the film attaching and cutting process, reducing manual labour and boosting throughput. Operators can easily control the system through an intuitive PLC and keyboard interface, selecting from six operating modes—five automatic and one manual—to suit varying packaging demands. Adjustable turntable and film carriage speeds allow optimal wrapping tension for different load sizes and types.

Safety and durability are key features, with slow start and stop functions controlled by an inverter to minimise mechanical wear. The machine also auto-detects pallet height, ensuring consistent film coverage every cycle. Designed with front and rear forklift access, it integrates smoothly into warehouse workflows.

Shrink wrap settings are fully customisable, with memory options for wrap positioning at the top, middle, and bottom of pallets. It handles package weights from 50 to 1500 kilograms and heights up to 2100 millimetres, making it versatile across many industrial sectors.

Powering this equipment is a 220V, 50Hz supply with three motors managing lift, pre-stretch, and turntable operations. It requires compressed air at 0.6MPa to function efficiently.

Ideal for warehouses, logistics centres, and manufacturing plants, this machine helps businesses improve packaging speed, safety, and consistency.

Contact us today to learn more about the Fully-Auto Stretch Wrapping Machine and get a customised quote. Call us on our toll-free number 1800 750 900 or fill out our contact form and we'll get back to you. Buy now to upgrade your packaging line.
