Crane / Forklift Spreader Beam

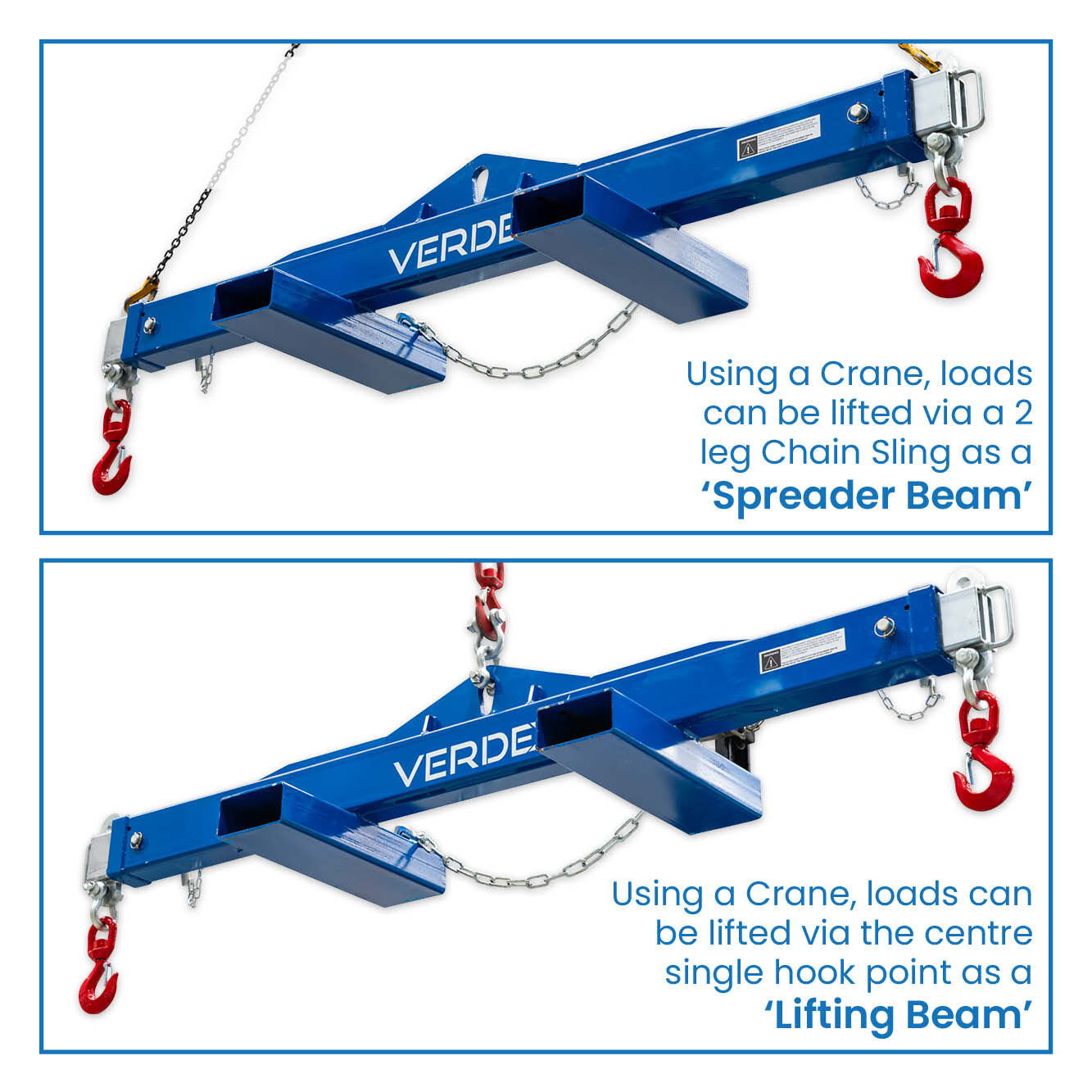

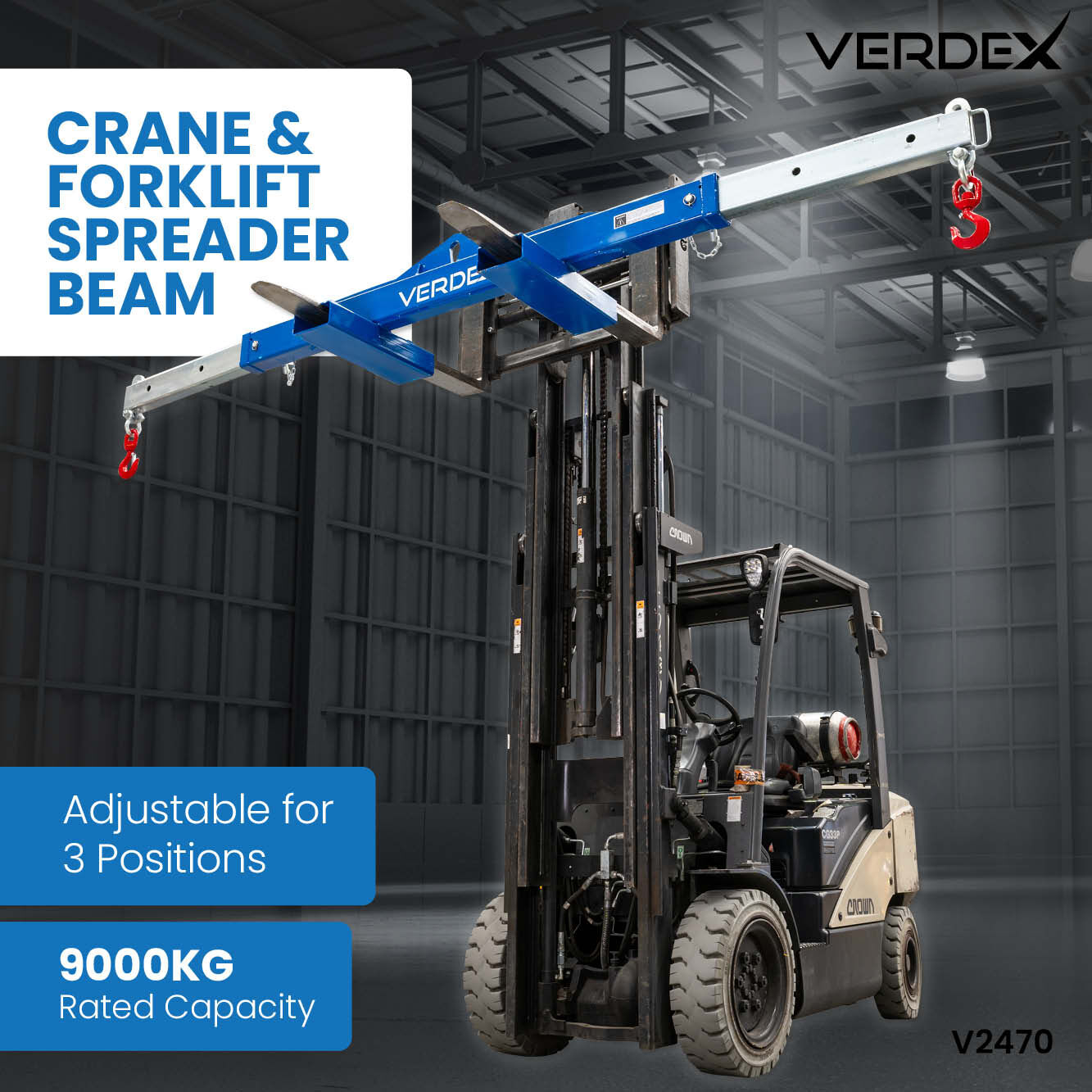

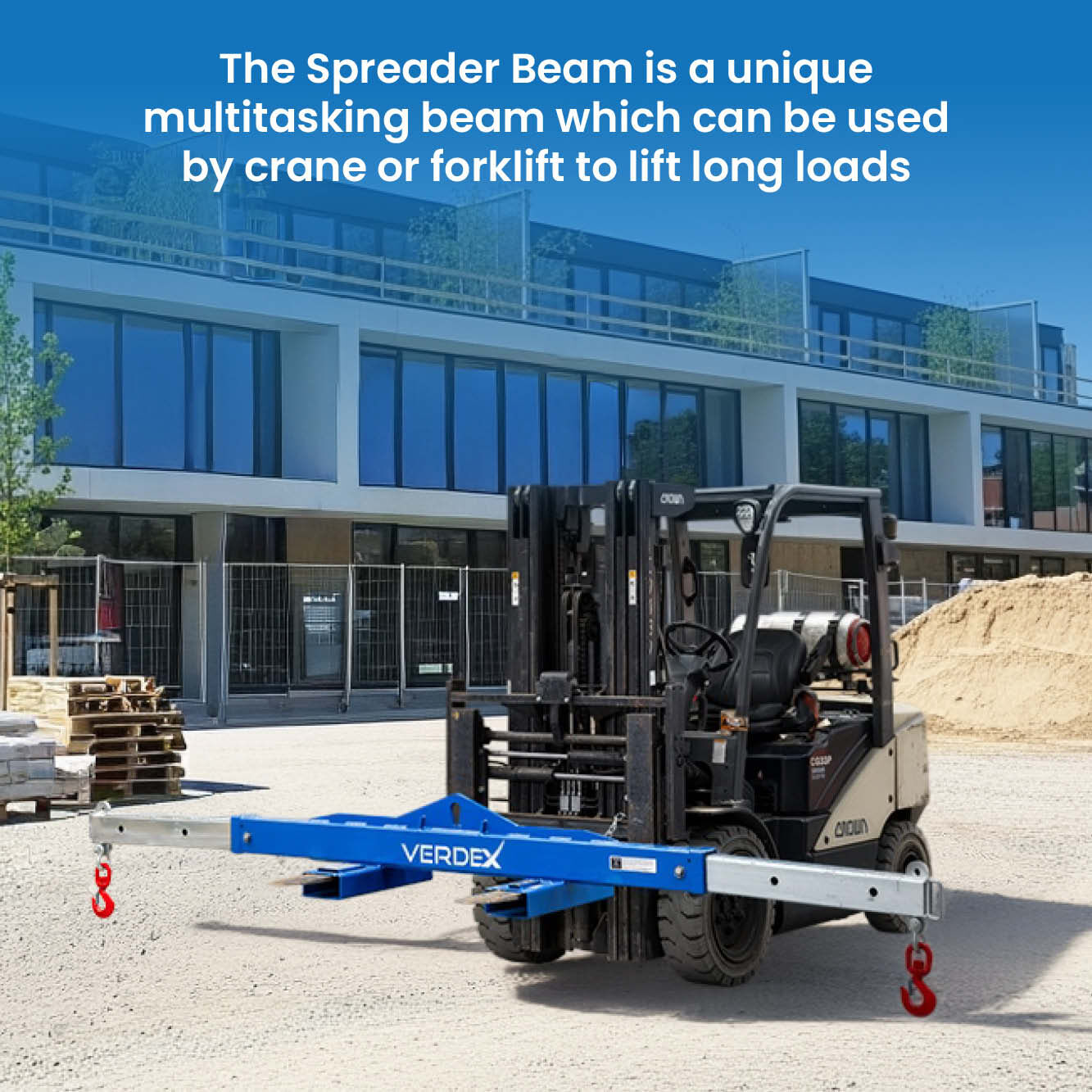

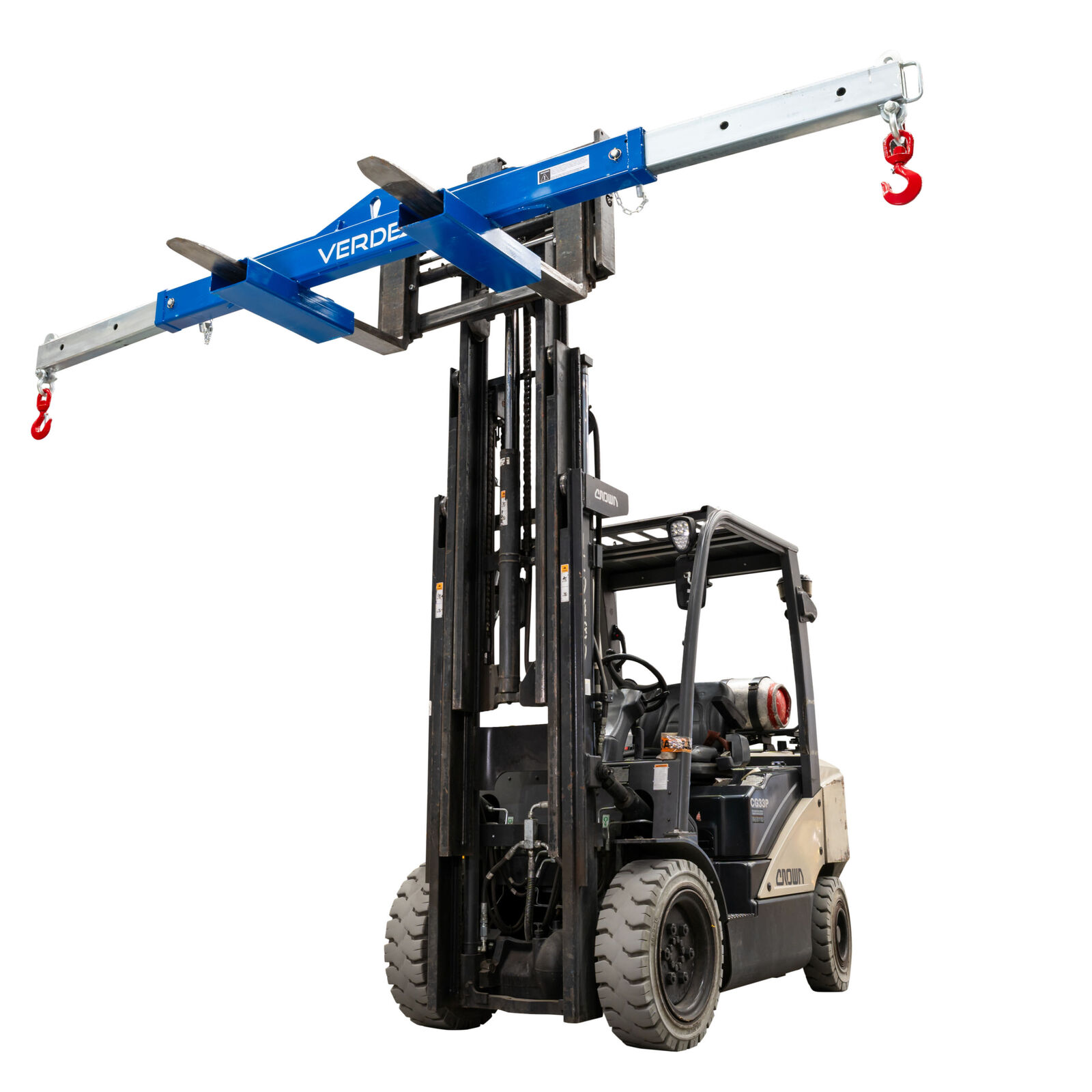

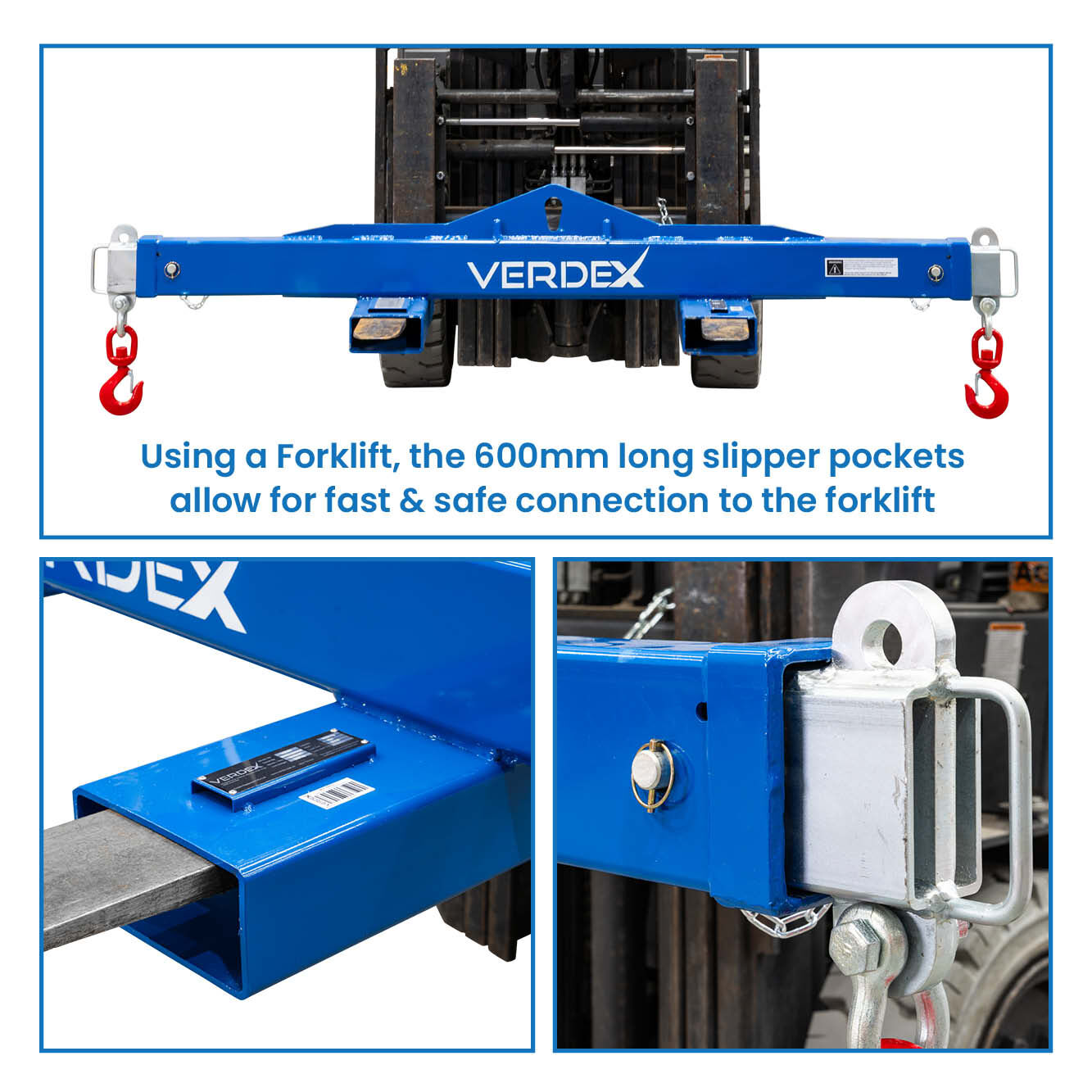

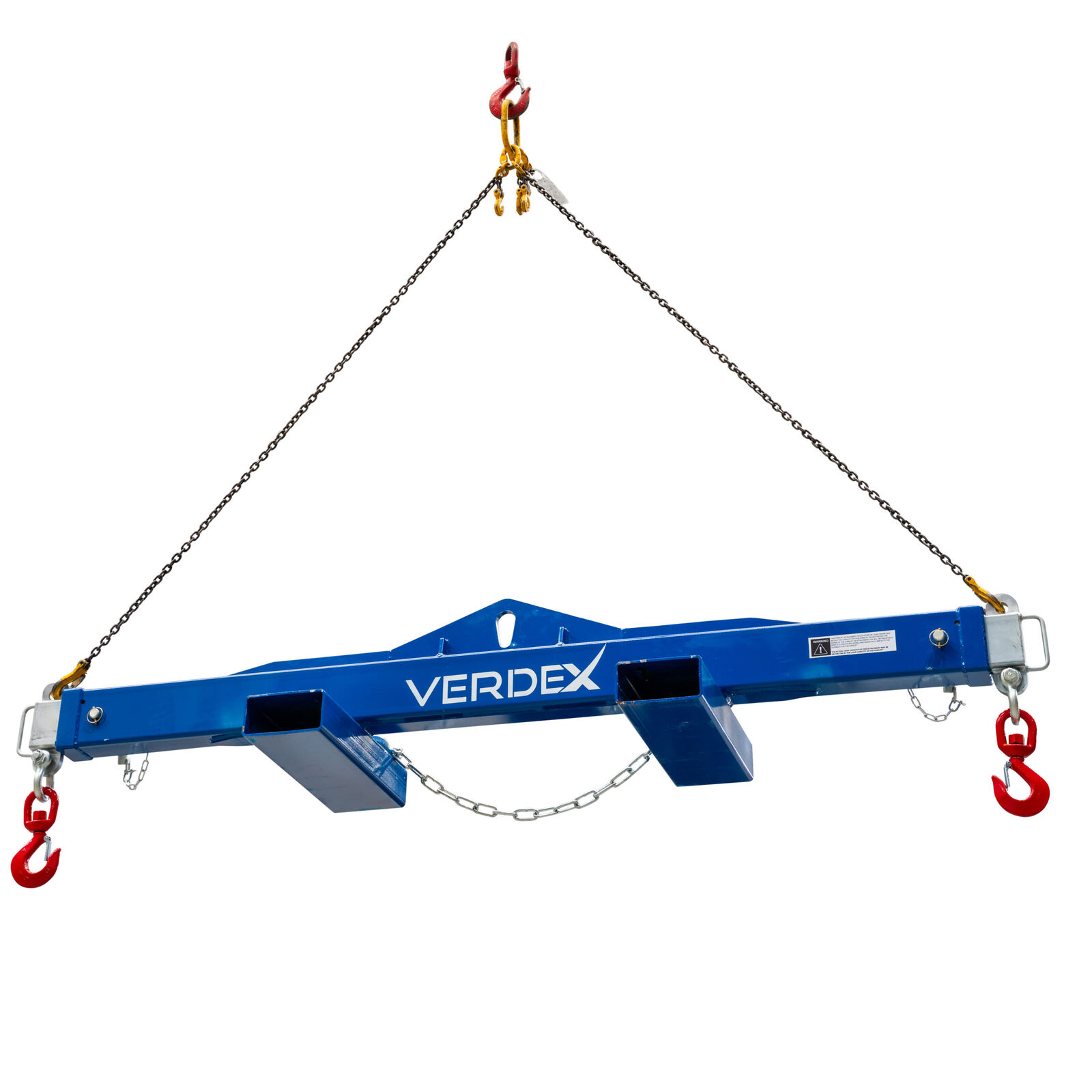

The type M2470 Spreader Beam is a unique multitasking Beam which can be used by Crane or Forklift to lift long loads. Using a Crane, loads can be lifted via the centre single hook point (as a ‘Lifting Beam’), or end lifted using a 2 leg Chain Sling (as a ‘Spreader Beam’). If lifting by forklift, the 600mm long slipper pockets allow for fast and safe connection to the truck.

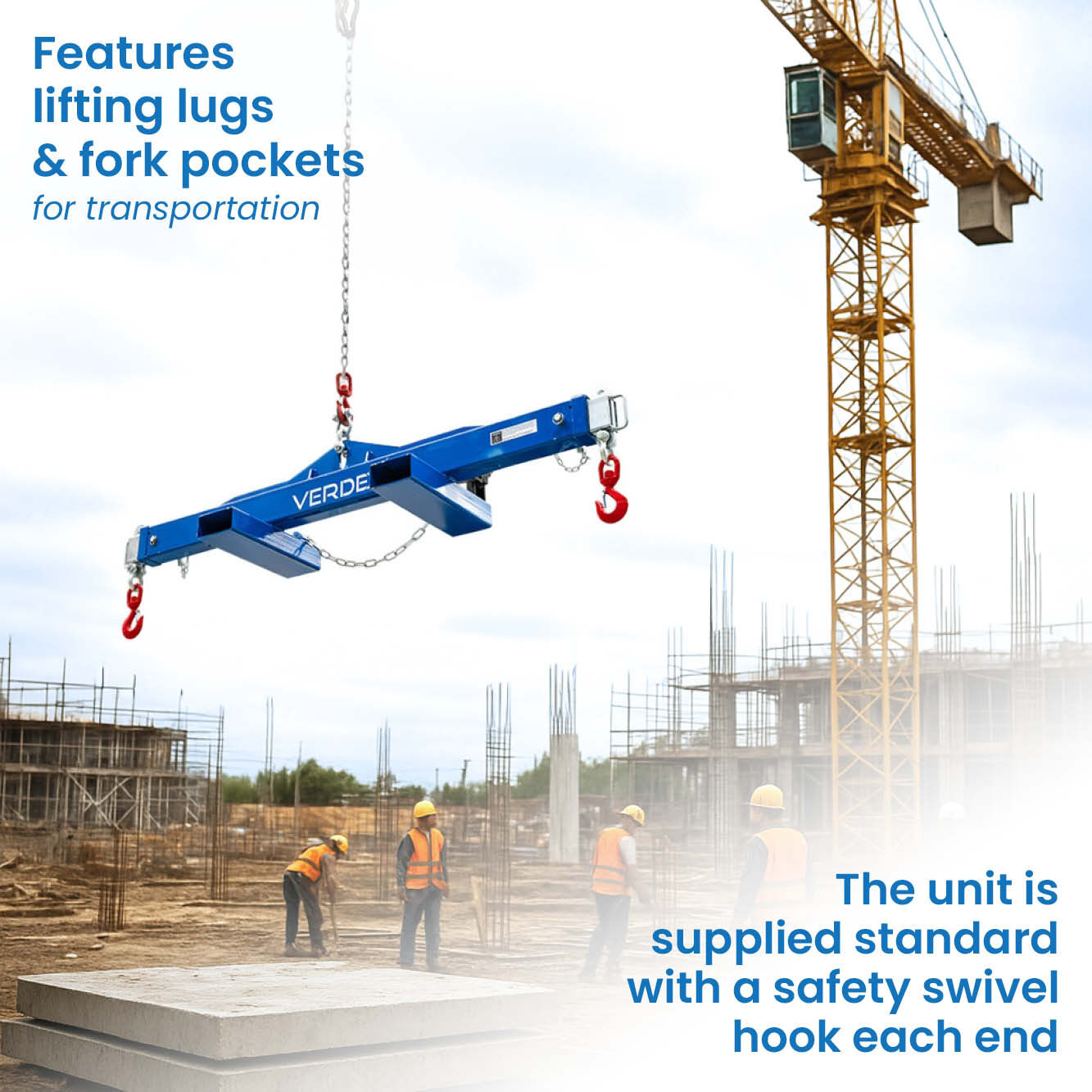

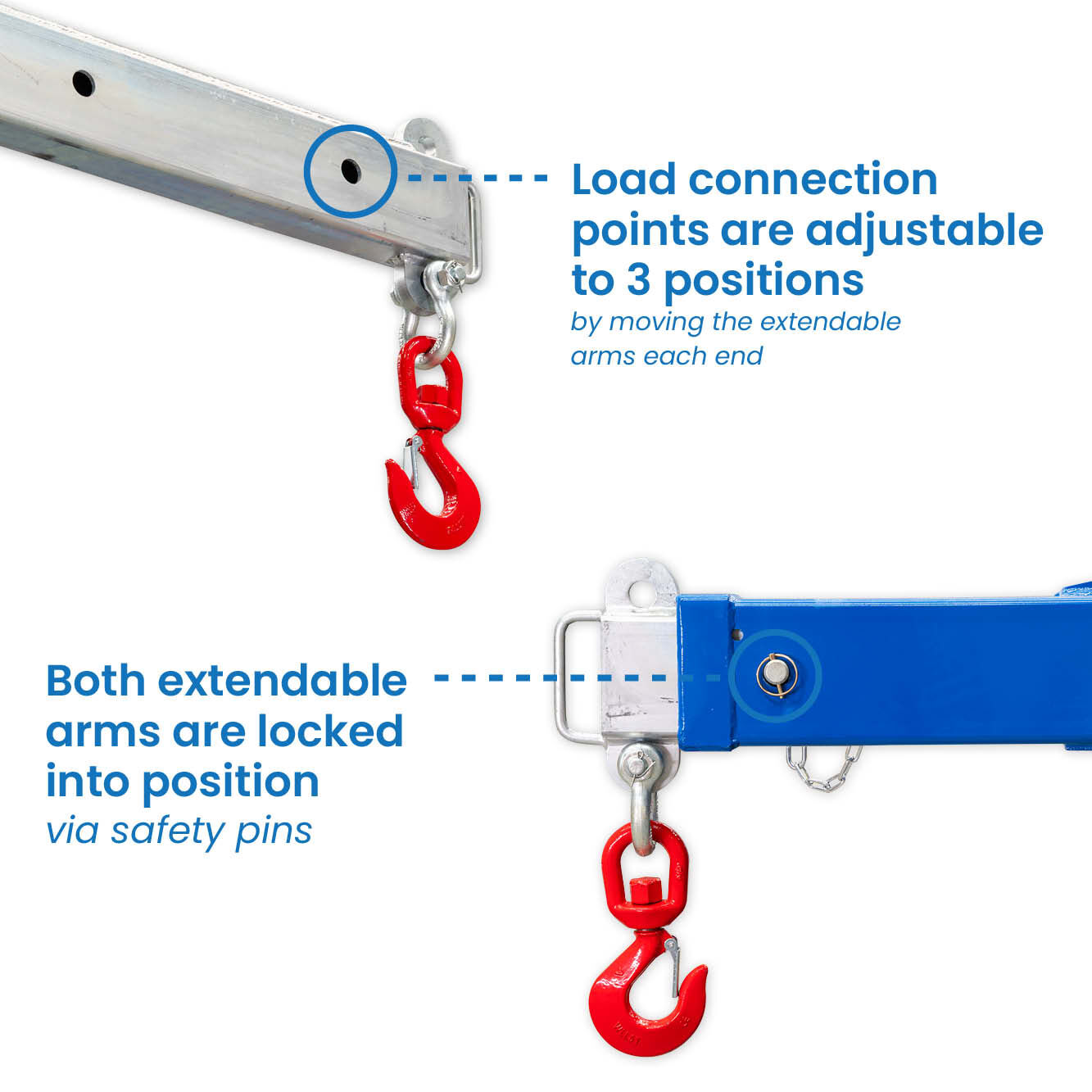

The Spreader Beam load connection points are adjustable to 3 positions by moving the extendable arms each end. Both extendable arms are locked into position via safety pins. The unit is supplied standard with a safety swivel hook each end.
The extendable arms are zinc plated with the main body painted in ‘safety orange’.

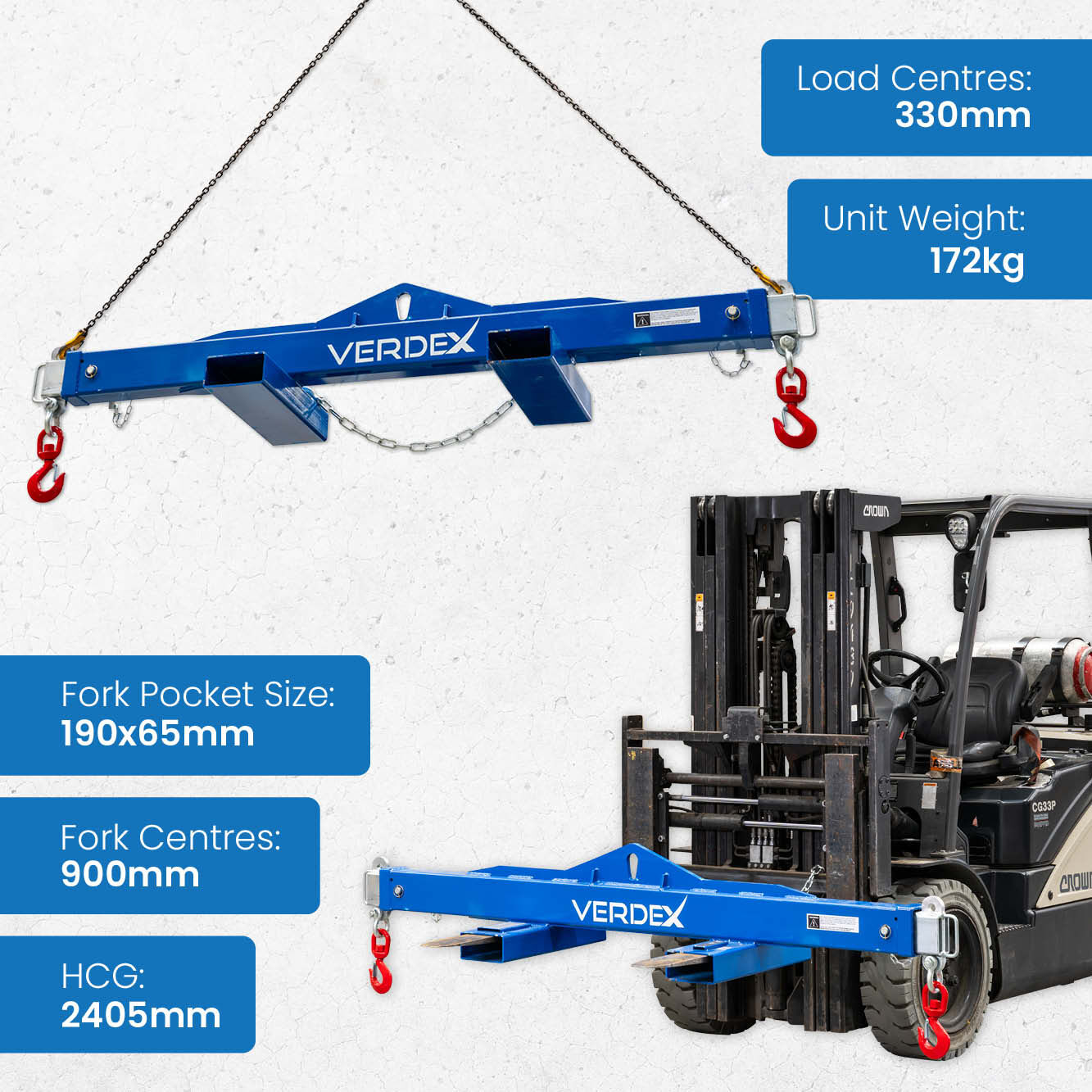

SPECIFICATIONS:
- F/Lift HCG: 2405mm
- Rated Capacity (RC Max.): 9000kg
- Load Centre (LC): 330mm

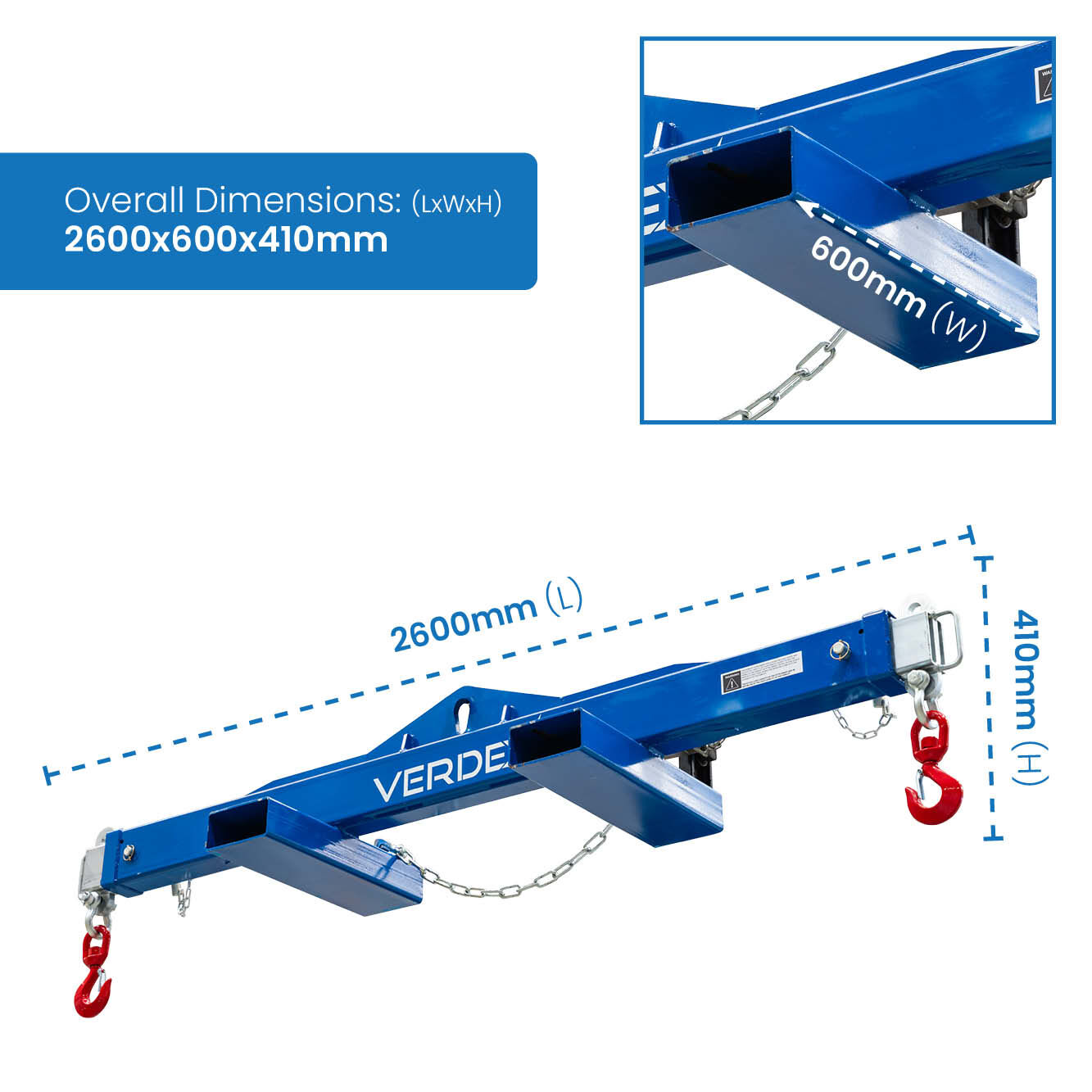

- Overall Size: 2600x600x410mm
- Fork Pocket Size:190x65mm
- Fork Centres: 900mm
- Unit Weight: 172kg
Rated Capacity (RC)
|
Fully Retracted
|
Middle Position
|
Fully Extended
|
Forklift Attachment | 3500kg | 1500kg | 750kg |
Lifting Beam | 4500kg | 2500kg | 1300kg |
Spreader Beam | 9000kg | 7200kg | 5600kg |
Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.
Please Note - We are not able to deliver goods to a PO Box address.
Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.
Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.
Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.
Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.
Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.
Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.
International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.
Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.
Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.
Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.
Click here to download a PDF Brochure Click here to fill in the form to request your required document

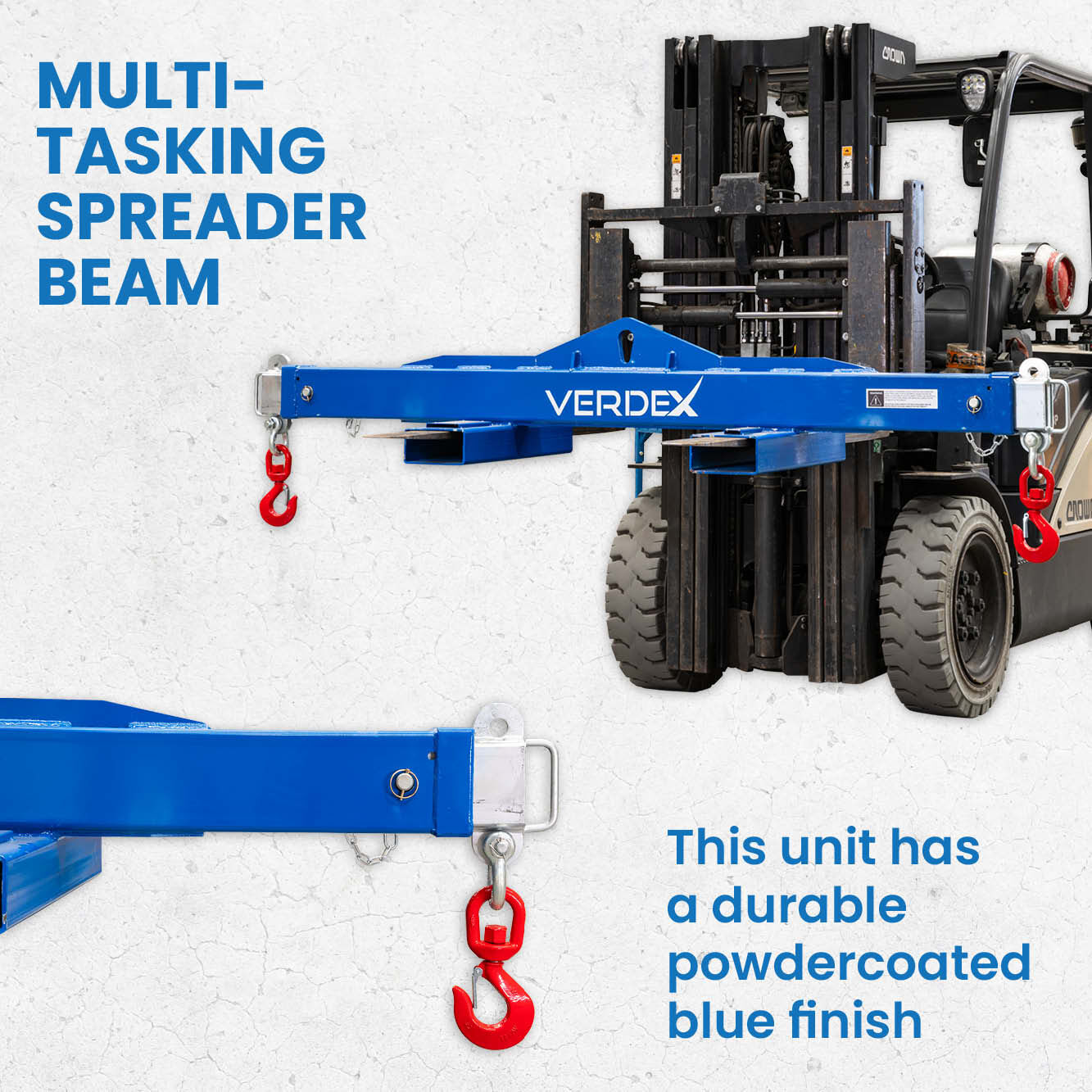

M2470 Spreader Beam, a multitasking solution designed to handle long loads with ease, whether lifted by crane or forklift. This innovative beam offers flexibility in lifting configurations, serving as both a Lifting Beam and a Spreader Beam depending on your needs.

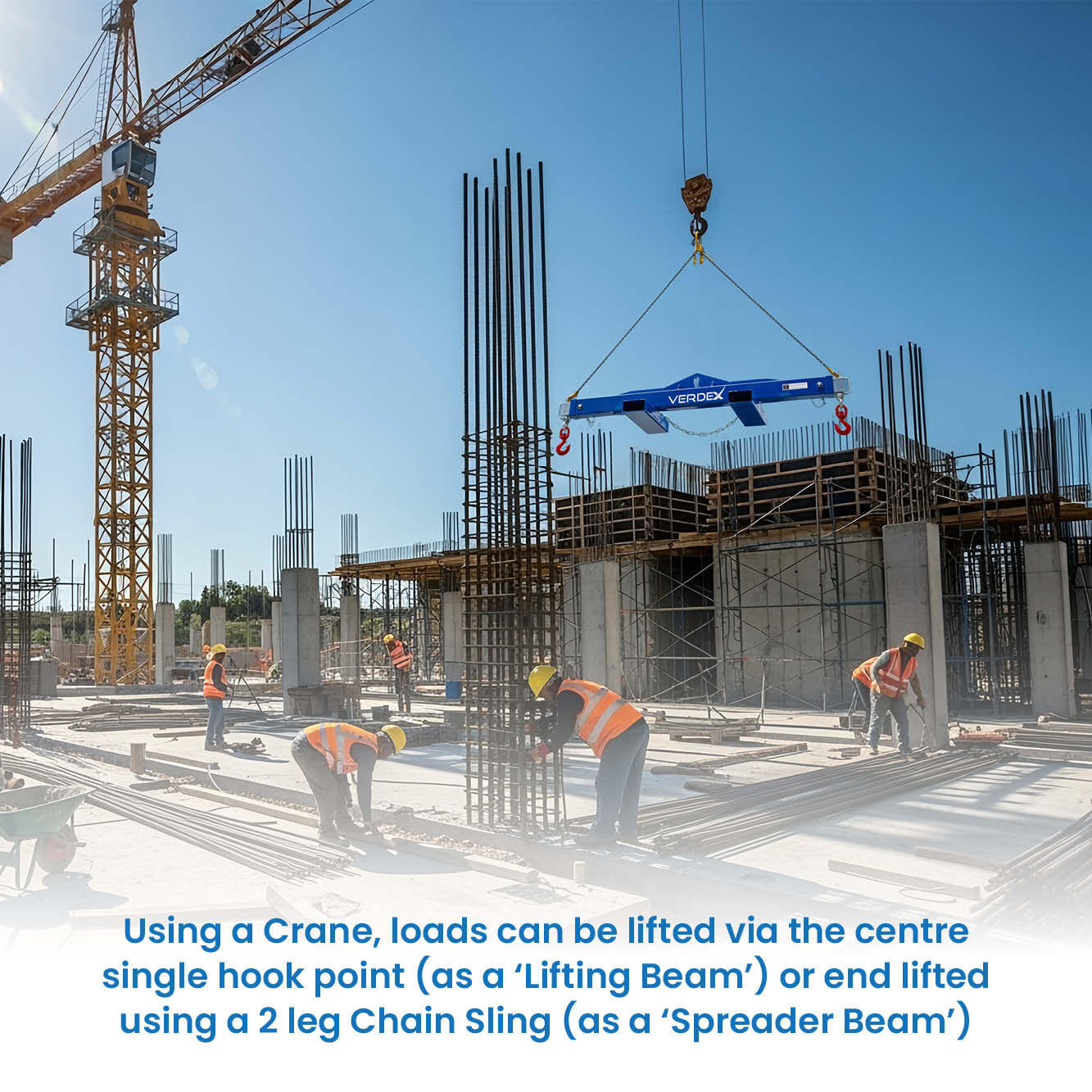

When used with a crane, loads can be lifted via the center single hook point or end lifted using a 2-leg chain sling. Alternatively, when lifted by forklift, the 600mm long slipper pockets allow for quick and secure connection to the truck.
The Spreader Beam features adjustable load connection points, with extendable arms that can be set to three positions and locked into place with safety pins. Each end is equipped with a safety swivel hook for added security during lifting operations.
Specifications:
- Forklift Lift Height Center of Gravity (F/Lift HCG): 2405mm
- Rated Capacity (RC Max.): 9000kg
- Load Centre (LC): 330mm
- Overall Size: 2600x600x410mm
- Fork Pocket Size: 190x65mm
- Fork Centres: 900mm
- Unit Weight: 172kg
Crafted with safety and durability in mind, the extendable arms are zinc plated, while the main body is painted in safety orange for high visibility. Whether you're lifting beams, pipes, or other long loads, MHA's Pallet Lifters are designed to provide versatile and reliable lifting solutions in any workplace.
