Jib Attachments

4.5 Tonne Telescopic Long Jib


$1,678.00 Price excludes GST

SKU

M2421

Availability:

In StockIn Stock

Subtotal:

$1,678.00
PRICES EXCL. GST

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

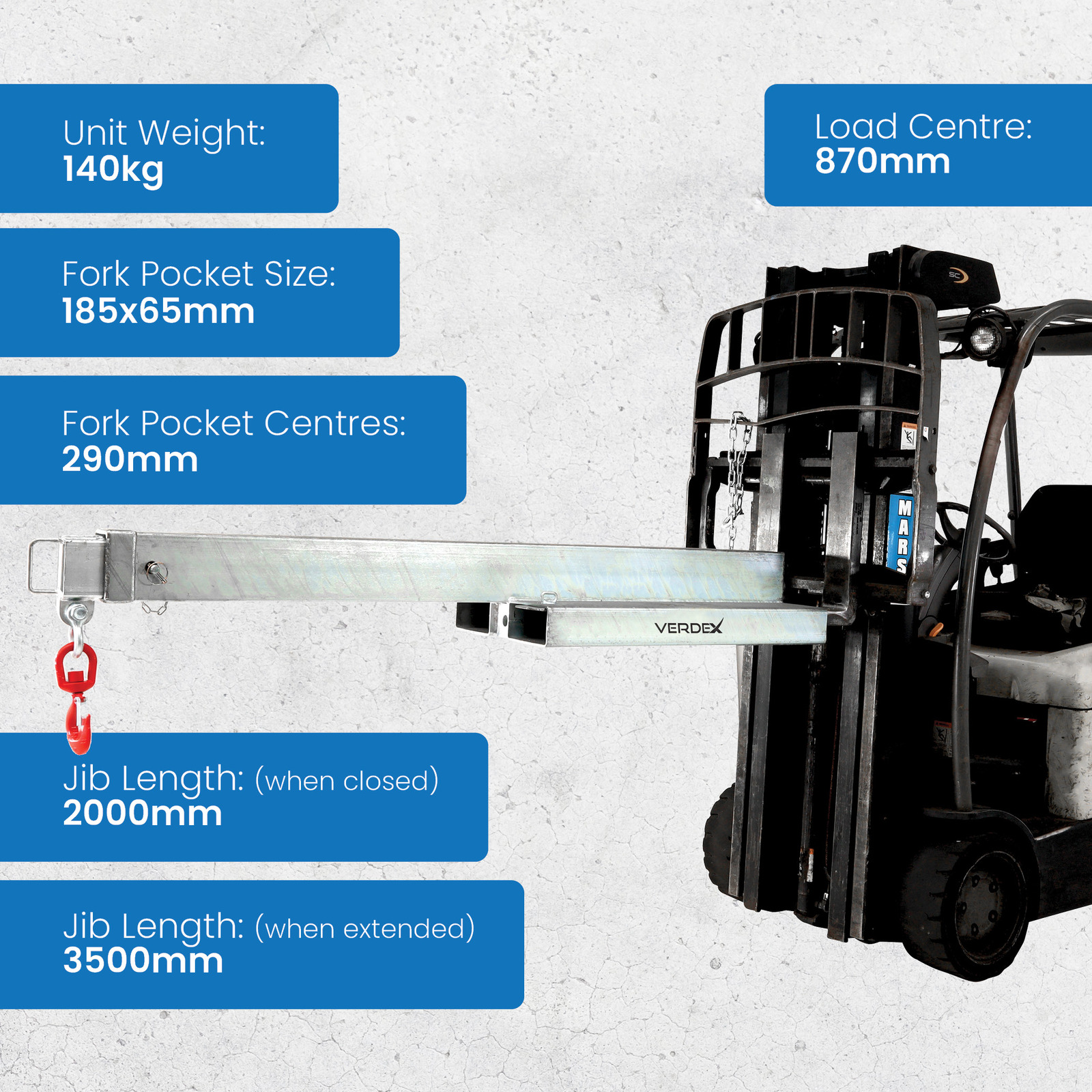

This 4500kg Telescopic Long Jib is a general purpose jib which is great for reaching across pits and areas where the forklift cant drive up to as it has a 3.5 metre reach when fully extended.

  • Finish: Zinc plated
  • 6 Jib Positions
  • Safe Working Load: 4500kg (SWL load chart is shown on jib)
  • Load Centre: 870mm
  • HGC: 836mm
  • Jib Length (when closed): 2000mm
  • Jib Length (when extended): 3500mm
  • Fork Pocket Size: 185x65mm
  • Fork Pocket Centres: 290mm
  • Unit Weight: 140kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document


4.5 Tonne Telescopic Long Jib

The 4.5-tonne telescopic long jib offers versatile lifting capabilities for a variety of applications, including reaching across pits and areas inaccessible to standard forklifts. With its zinc-plated finish and multiple jib positions, it provides reliable performance and extended reach when fully extended. Here are the key features and specifications:

Features:

Versatile Design:

Designed as a general-purpose jib, the telescopic long jib is ideal for applications requiring extended reach, such as reaching across pits or inaccessible areas where conventional forklifts cannot drive up.
Zinc Plated Finish:

Finished with zinc plating, the jib offers enhanced durability and corrosion resistance, ensuring longevity even in demanding working environments.
Multiple Jib Positions:

Equipped with six jib positions, the jib provides versatility to adjust the lifting angle as needed, allowing for precise positioning of loads and improved efficiency.
Safe Working Load (SWL):

The jib has a safe working load capacity of 4500kg, providing reliable lifting performance for heavy loads. The SWL load chart is conveniently displayed on the jib for reference.
Optimized Load Centre:

With a load center of 870mm, the jib offers balanced lifting capabilities, ensuring stability and safety during operation.
Height Center of Gravity (HCG):

The jib's height center of gravity is set at 836mm, contributing to stable lifting performance and minimizing the risk of tipping or imbalance.
Telescopic Functionality:

The jib features a telescopic design that allows it to extend to a length of 3500mm when fully extended, providing extended reach for lifting tasks while maintaining compact dimensions when closed (2000mm).
Fork Pocket Size and Centers:

The jib is equipped with fork pockets sized at 185x65mm, with centers spaced at 290mm, ensuring compatibility with a wide range of forklift models and easy attachment.
Unit Weight:

The jib has a unit weight of 140kg, offering a sturdy yet manageable construction for efficient handling and installation.

Experience enhanced lifting capabilities and extended reach with the 4.5-tonne telescopic long jib. Whether for industrial, construction, or warehouse applications, MHA's Jib Attachments provide the durability, flexibility, and safety features required for efficient material handling operations.
