Electric Expandable Conveyor with Sensor Control- 610mm (Daisy Chainable) Electric Expandable Conveyor with Sensor Control- 610mm (Daisy Chainable) Electric Expandable Conveyor with Sensor Control- 610mm (Daisy Chainable) Electric Expandable Conveyor with Sensor Control- 610mm (Daisy Chainable)
Click on image above to enlarge

Roller Conveyors

Electric Expandable Conveyor with Sensor Control- 610mm (Daisy Chainable)


$6,540.00 Price excludes GST

SKU

V3039

Availability:

In StockIn Stock

Subtotal:

$6,540.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Download PDF Download PDF Brochure Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

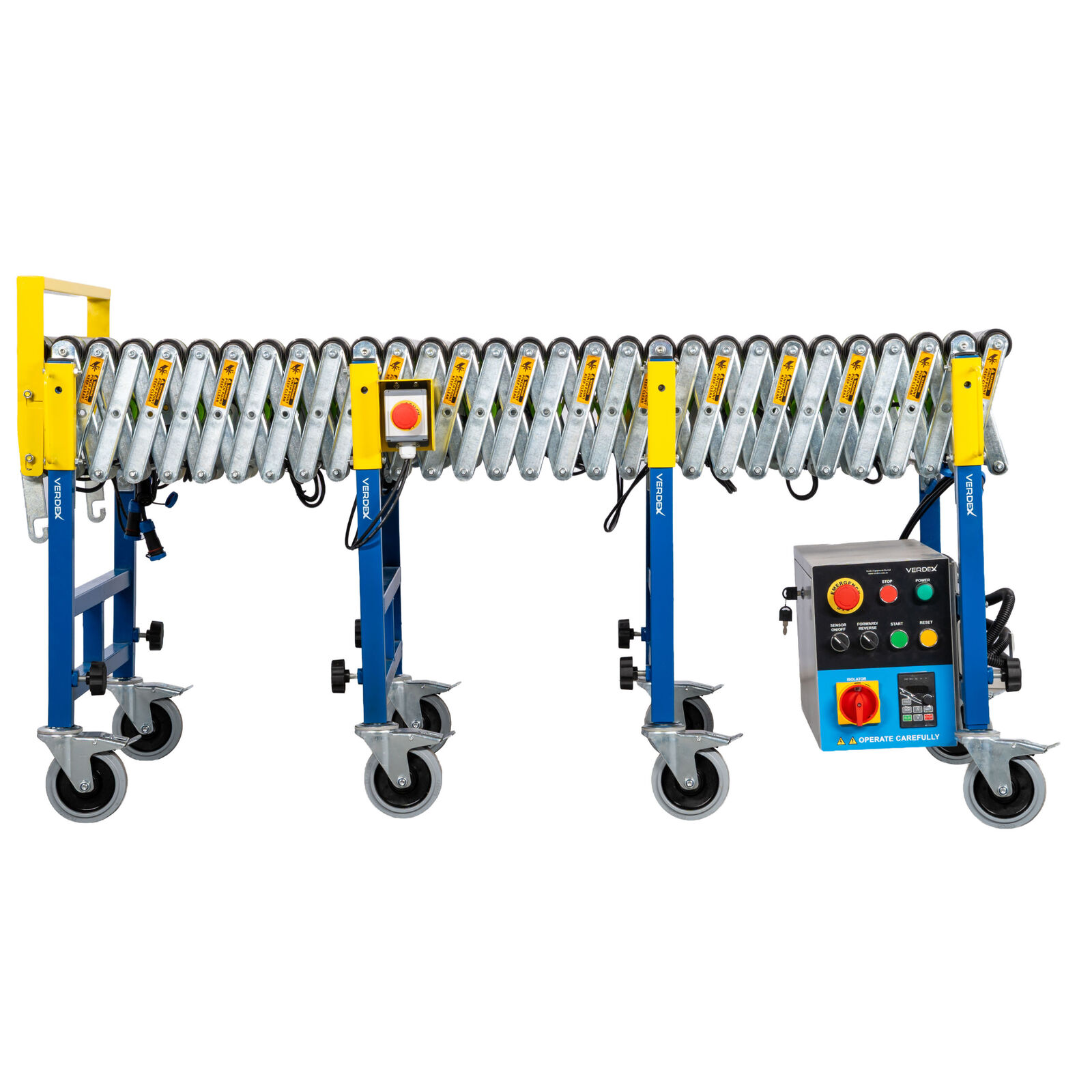

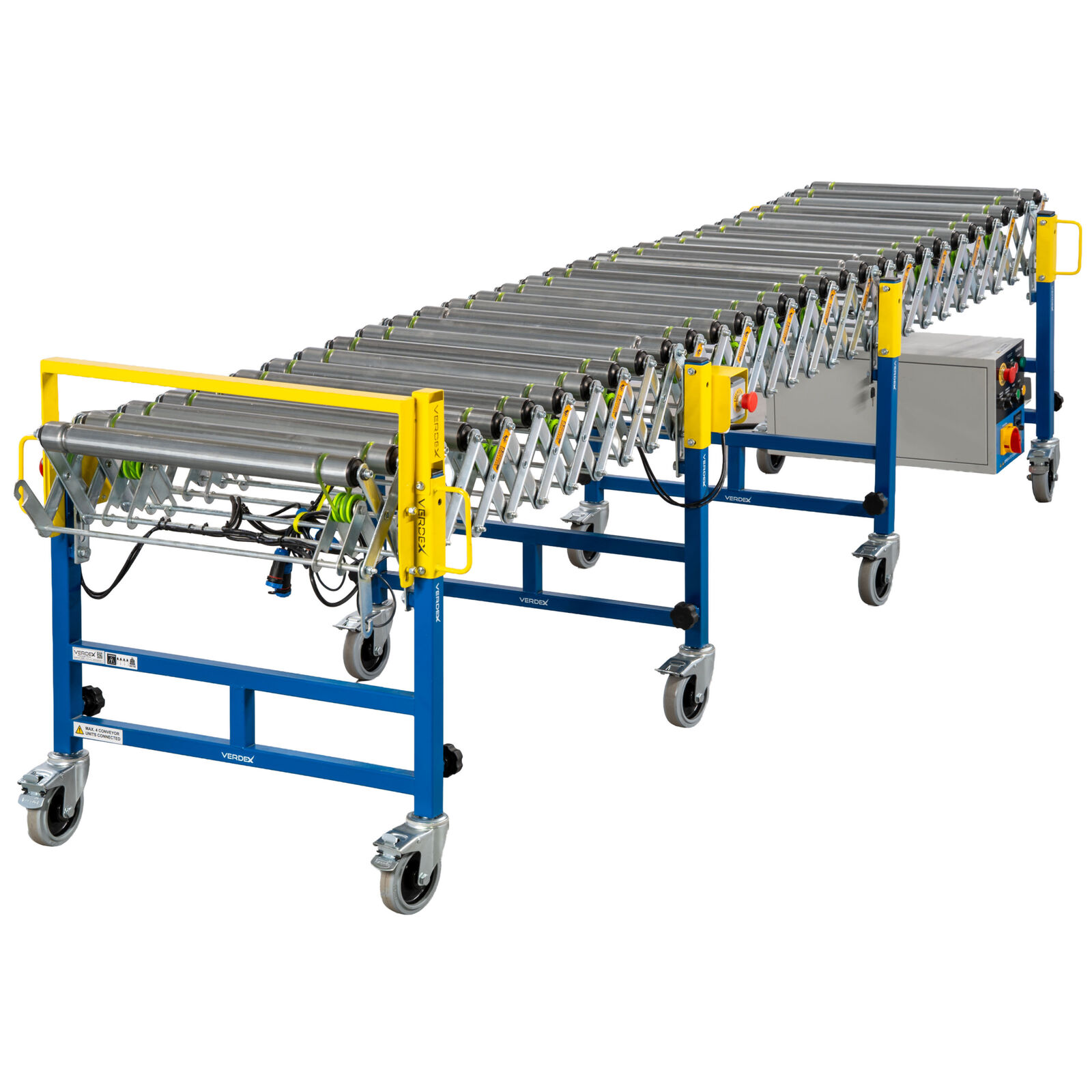

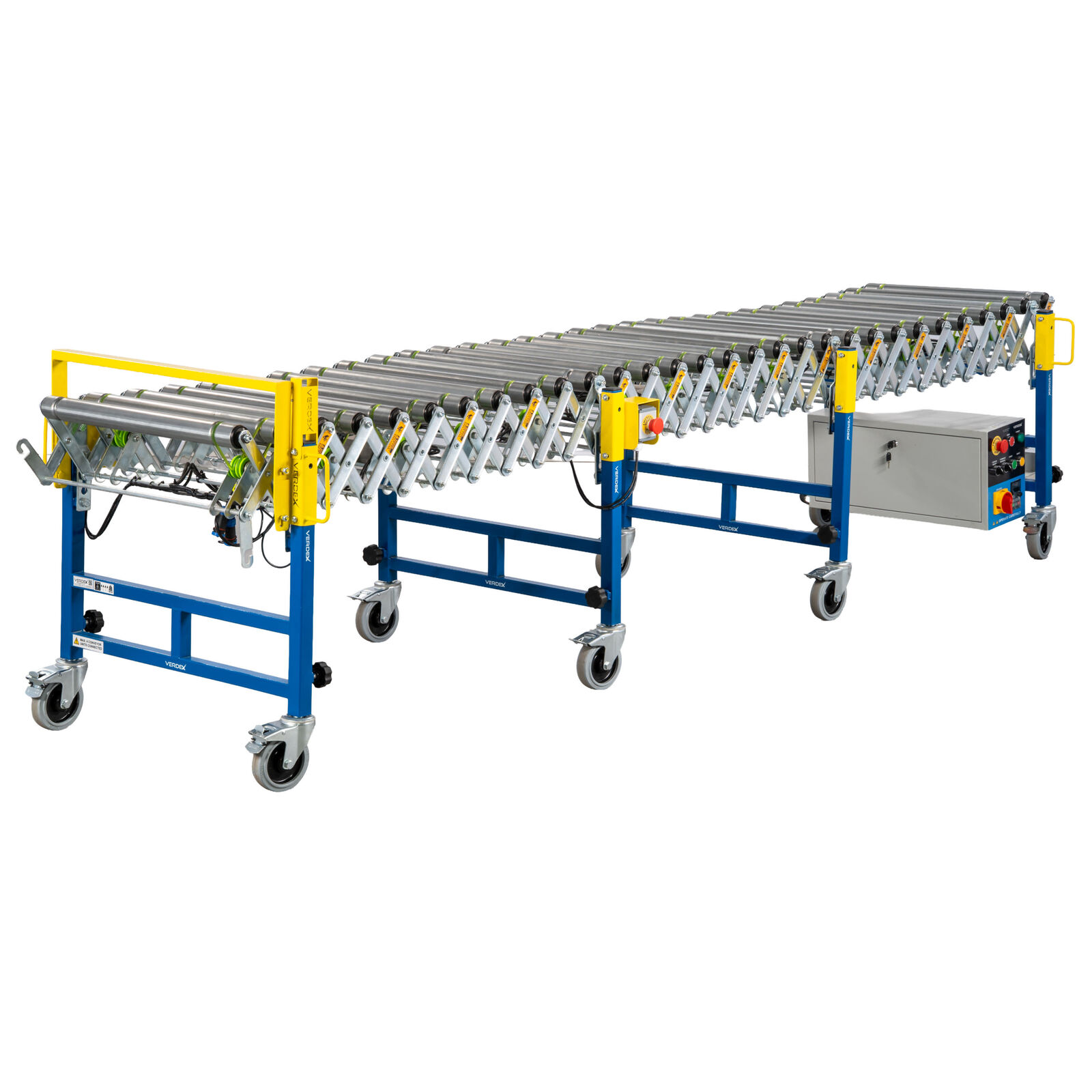

The Electric Expandable Conveyor with Sensor Control (610mm) is designed to optimise productivity in warehouses, distribution centres, and logistics operations. Fitted with powered rollers coated in ZAM (zinc aluminium magnesium), it enables smooth, high-speed loading and unloading while reducing the need for manual handling. The flexible design allows the conveyor to bend around corners, connect to multiple dock doors, and retract when not in use. For even greater efficiency, an optional Photo Eye Sensor Kit can be installed, providing an automatic package stop between rollers or at the conveyor’s end.

  • The Electric Expandable Conveyor expands from 1500mm to 4350mm. The flexible convoyer can bend and twist as needed to manoeuvre around obstacles
  • Conveyers can curve up to 90° and 180° curves

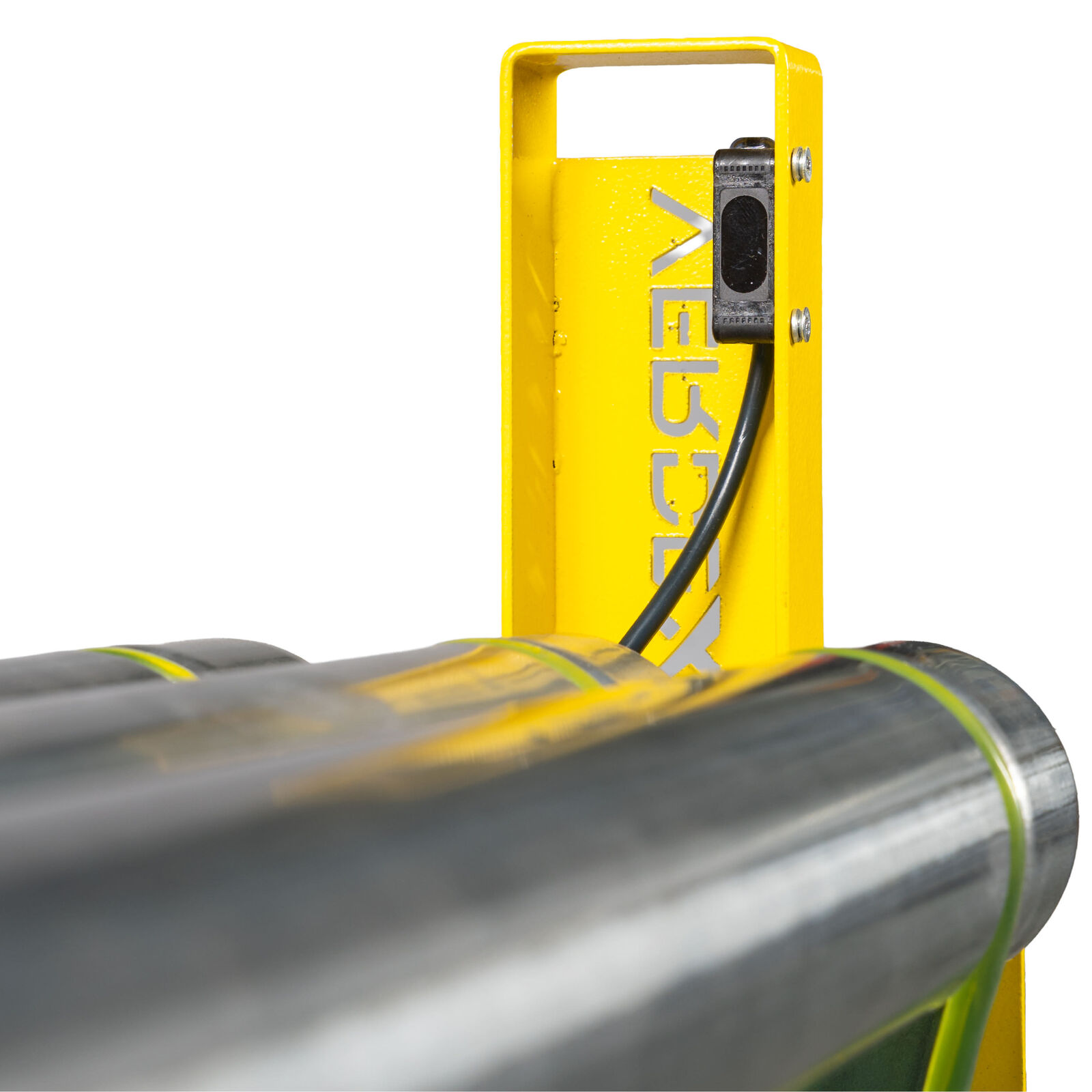

  • Features Emergency E stop and optional Photo Eye Sensor - Optional Photo Eye Senso Kit can act as an electronic package stop between or at end of rollers
  • Maximum 4 x units can be daisy chained connected and joined to make 1 continuous convoyor system
  • Easy and quick setup with adjustable height legs from 750mm to 1000mm and 125mm brake castors on every leg
  • Ergonomically designed side handles provide a safe grabbing point for operators to open and close conveyors
  • Load Capacity: 50kg/SQ.M
  • Castors: 127mm Bolt Hole Swivel with Brake
  • Speed: 10-40m/min.
  • Motor: 90W
  • Drive Belt: Round Belt
  • Roller:
    • Outside Diameter: 50mm
    • Thickness: 1.5mm
    • Material: Carbon Steel
    • Finish: ZAM Coating (zinc aluminium magnesium)
  • Shaft:
    • Outside Diameter: 10mm
    • Conveyor Width: 610mm
    • Min. Conveyor Length Retracted: 1500mm
    • Max. Conveyor Length Expanded: 4350mm
    • Conveyor/Roller Height Range: 750-1000mm
  • Unit Weight: 156kg
