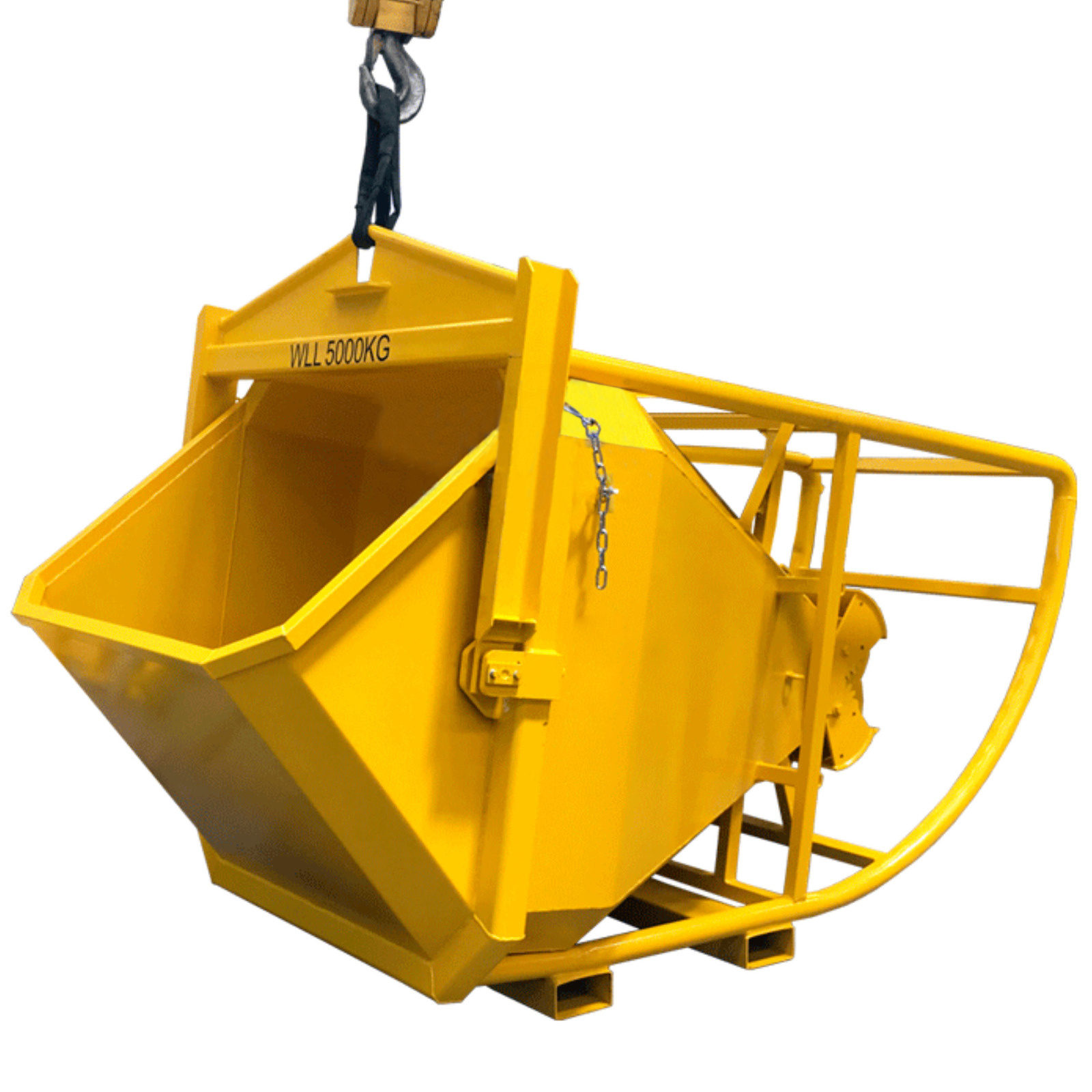

Concrete Kibble Laydown (3.0 Cubic Metre)
Click on image above to enlarge

Concrete Equipment

Concrete Kibble Laydown (3.0 Cubic Metre)


$11,950.00 Price excludes GST

SKU

V6233

Availability:

Out Of StockAvailable for Backorder

Subtotal:

$11,950.00
PRICES EXCL. GST
Add To CartAdd To Cart

*Please contact us for pricing on bulk quantity purchases*

Ask a QuestionAsk a Question
Quantity
Zipcode

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Product Dimensions / Specifications

Built for large-scale use, the Concrete Kibble combines heavy-duty construction with roll-over functionality for streamlined crane transfer of concrete.

  • Available in models accommodating up to 3.0 cu.m for heavy-duty use
  • Roll-over (laydown) design enables direct filling from a concrete chute
  • Equipped with a 400x400mm clamshell gate, lever operated and auto-closing for safety
  • Supplied with a removable funnel and 2m lay-flat hose for controlled concrete placement
  • Fitted with 4-point crane lugs to enhance lifting safety and minimise stress
  • Includes fork pockets for easy relocation around the worksite
  • Protected with an enamel paint finish
  • Lay Flat Hose Dimensions (LxW): 200x2000mm
  • Working Load Limit (WLL): 7500kg
  • Capacity: 3.0 cu.m
  • Laydown Dimensions: 3280x2010x2090mm
  • Fork Pocket Size: 185x85mm
  • Fork Pocket Centres: 750mm
  • Unit Weight: 1000kg


Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to fill in the form to request your required document

Introducing the Concrete Kibble Laydown, a heavy-duty solution designed for effortless transfer of concrete on-site using an overhead crane. This roll-over style kibble offers convenience and efficiency for large-scale construction projects.

Key Features:

Versatile Capacity Options: The Kibble is available in models suited for large applications, with capacities available for up to 3 cubic meters. This ensures suitability for a wide range of project requirements, offering flexibility and versatility.

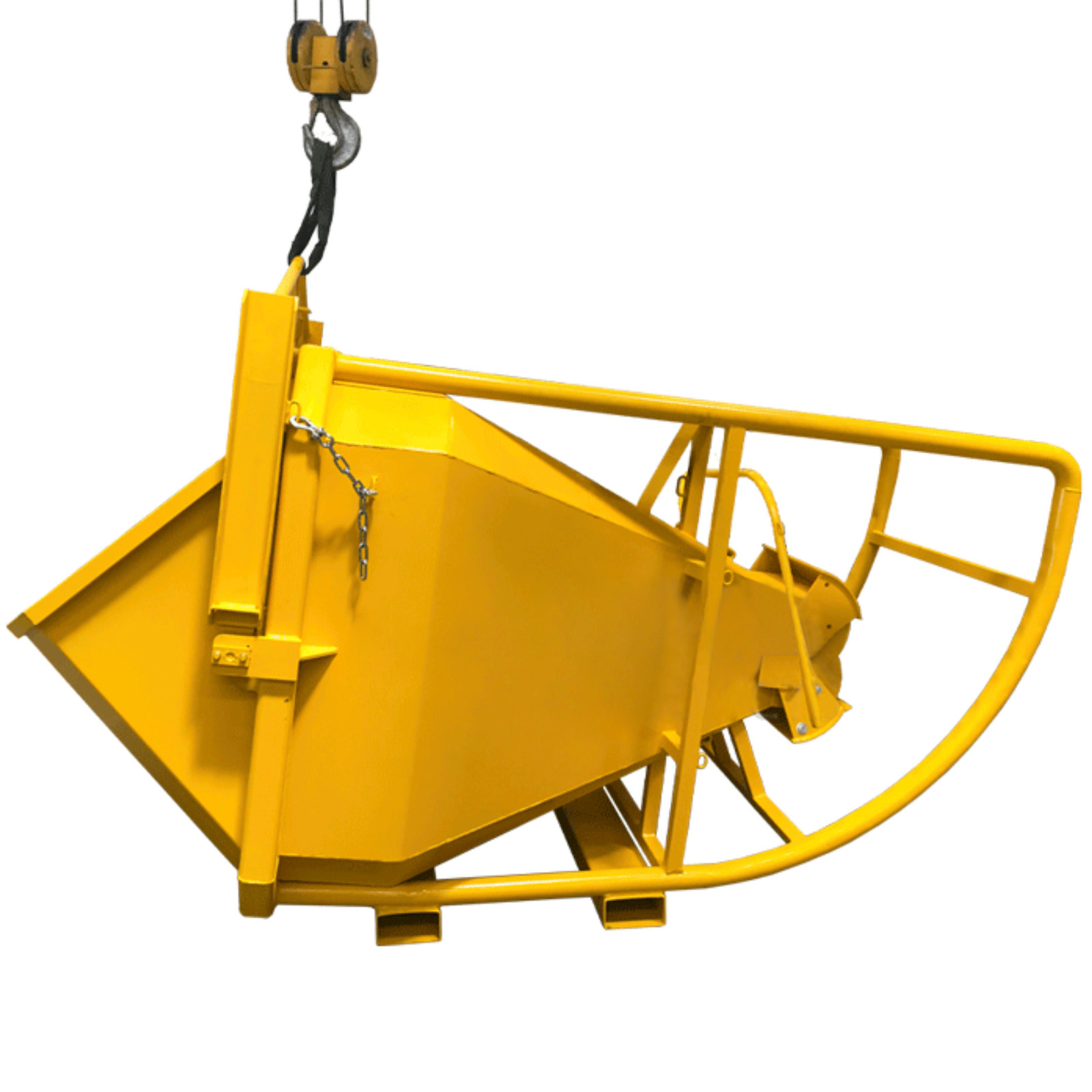

Roll-over Style: The roll-over (laydown) style design allows for easy filling from a concrete dispensing chute, streamlining the concrete transfer process and enhancing efficiency on the construction site.

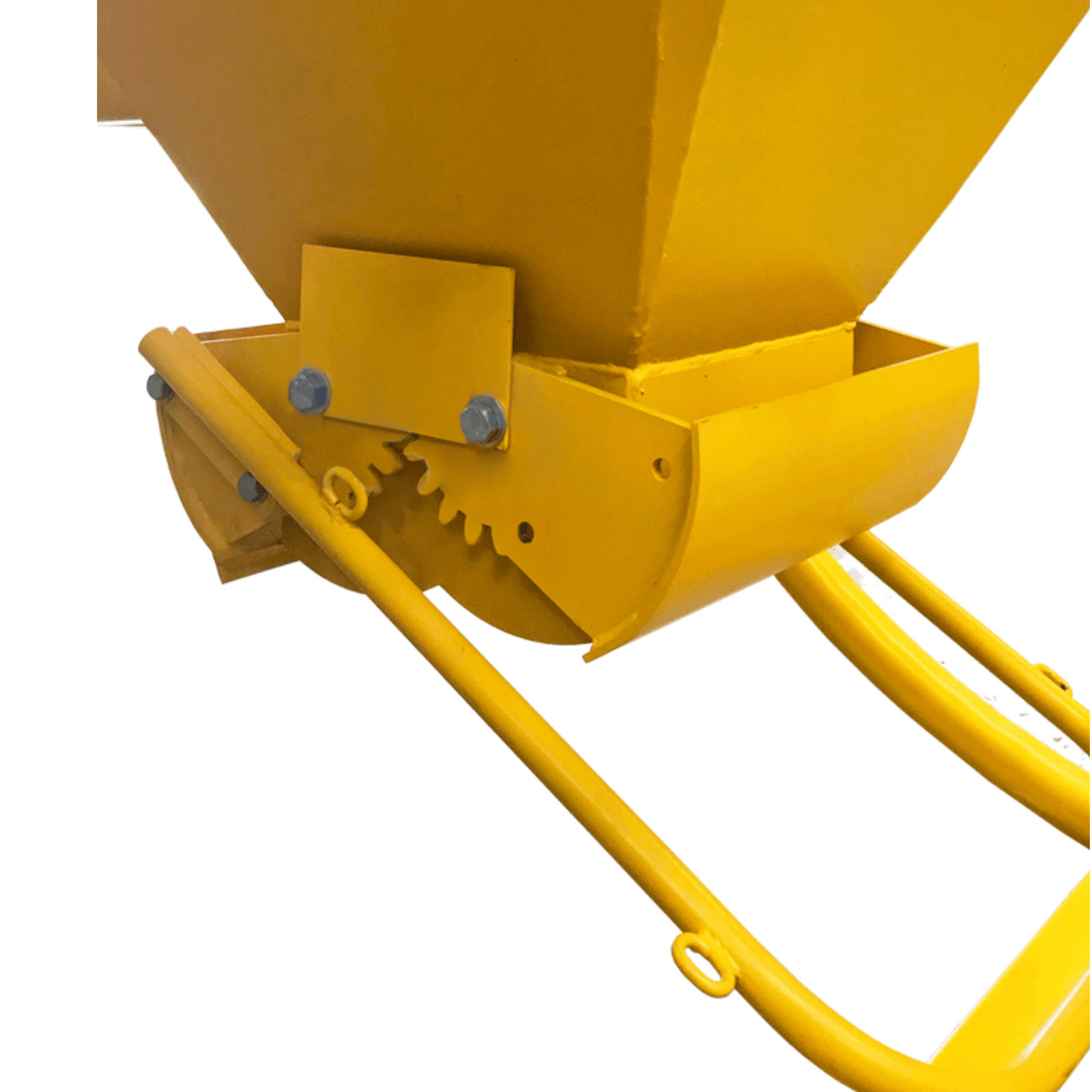

Clamshell Gate with Auto Close: Equipped with a lever-operated 400mm x 400mm clamshell gate with auto close feature, the kibble ensures controlled and precise discharge of concrete, minimizing waste and maximizing productivity.

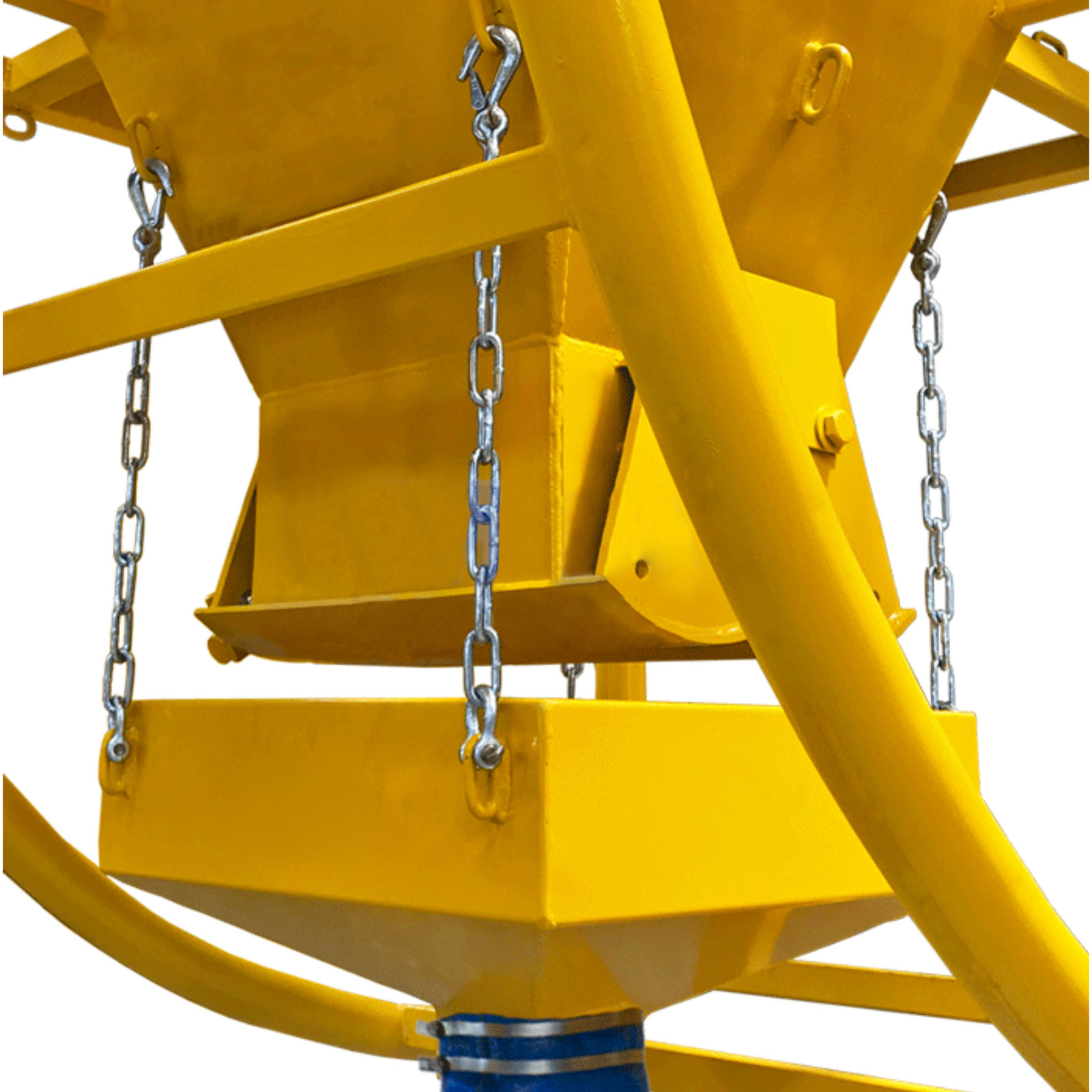

Removable Concrete Funnel: The kibble includes a removable concrete funnel with a 2-meter lay-flat hose, enabling controlled flow when filling wall cavities, columns, or narrow formwork. This feature enhances accuracy and efficiency during concrete pouring tasks.

Fork Pockets for Transport: Fork pockets are fitted to facilitate easy transportation around the worksite, promoting convenience and maneuverability during handling and positioning.

Hydraulic Kibble Option: An optional Hydraulic Kibble (HPP-REMOTE) is available for remote control operation, further enhancing ease of use and efficiency in concrete transfer operations.

Specifications:

Working Load Limit: 7500kg
Capacity: 3.0 cubic meters
Laydown Dimensions: 3615x2100x2415mm
Fork Pocket Size: 185x85mm
Fork Pocket Centres: 700mm
Unit Weight: 1310kg
Lay Flat Hose Dimensions: 200x2000mm
Paint Finish: Enamel


Upgrade your concrete pouring operations with the Concrete Kibble Laydown, offering versatility, efficiency, and reliability for large-scale construction projects. Experience enhanced productivity and control with our range of Concrete Equipment, designed to meet the demands of your worksite.
