Panel Cart Trolleys

A Frame Panel Carts (with Pneumatic Wheels)


View Pricing & Order
  • The A frame panel trolley is ideal for transporting bulky items
  • Optional trestle rack version available, so that long product can be stored at different heights
  • Zinc Finish
  • Pneumatic Wheels - 2 x fixed, 2 x swivel with brakes
  • Range of accessories available to suit
  • Load Capacity: 300kg
  • Wheel Size: 200mm
  • Base Height: 280mm

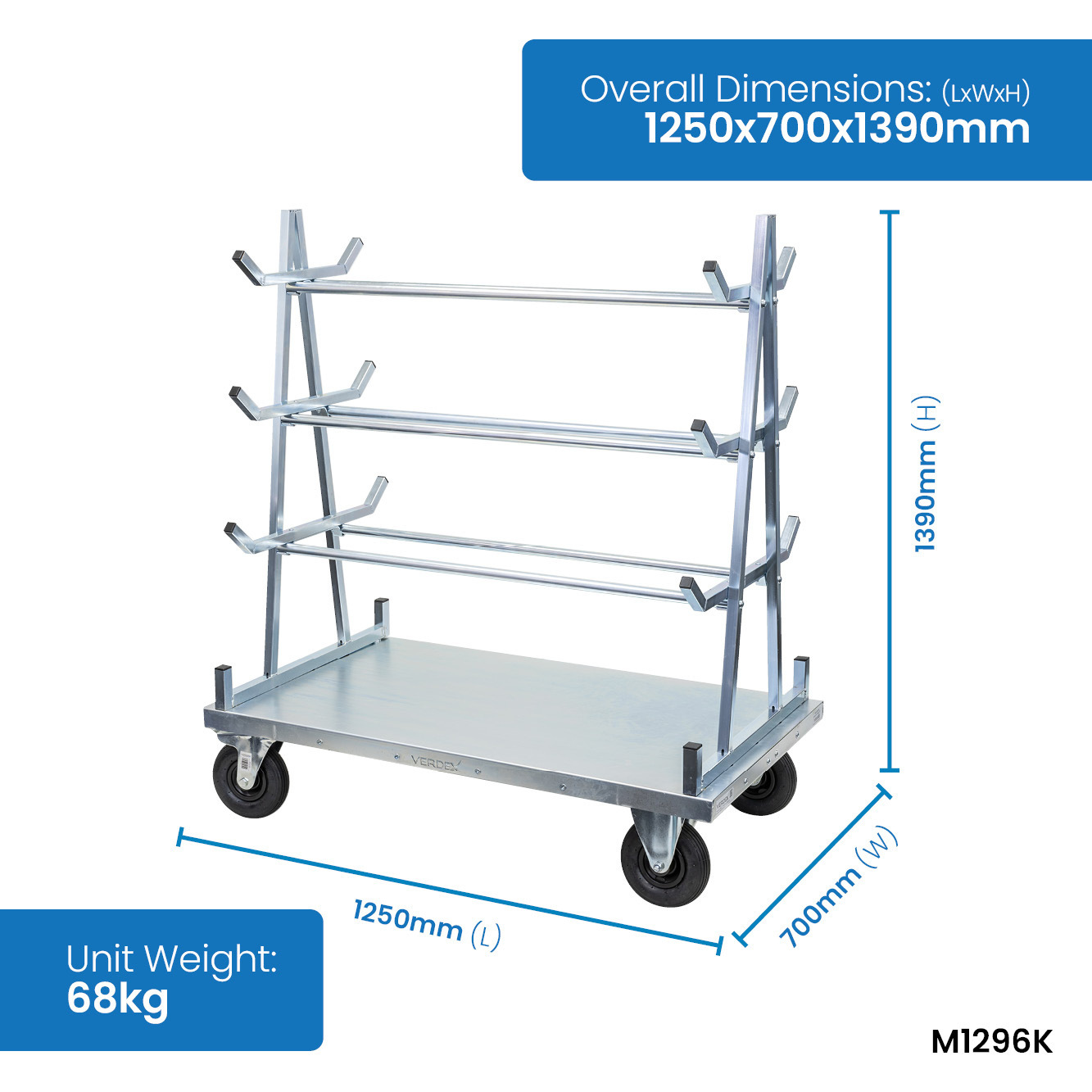

  • Overall Size (LxWxH): 1250x700x1390mm
  • M1296 Unit Weight: 53kg
  • M1296K Unit Weight: 68kg
Download PDF Download PDF Brochure Ask a QuestionAsk a Question

Product Description

  • The A frame panel trolley is ideal for transporting bulky items
  • Optional trestle rack version available, so that long product can be stored at different heights
  • Zinc Finish
  • Pneumatic Wheels - 2 x fixed, 2 x swivel with brakes
  • Range of accessories available to suit
  • Load Capacity: 300kg
  • Wheel Size: 200mm
  • Base Height: 280mm
  • Overall Size (LxWxH): 1250x700x1390mm
  • M1296 Unit Weight: 53kg
  • M1296K Unit Weight: 68kg
View More Specifications

Fast Delivery Australia Wide

Price Match Guarantee

Australian Standards Compliant (where required)

Quality Beyond Compare

Comprehensive Range

100% Australian-Owned

Scroll left to view details

Image Description Code Price Each Order Quantity
Availability

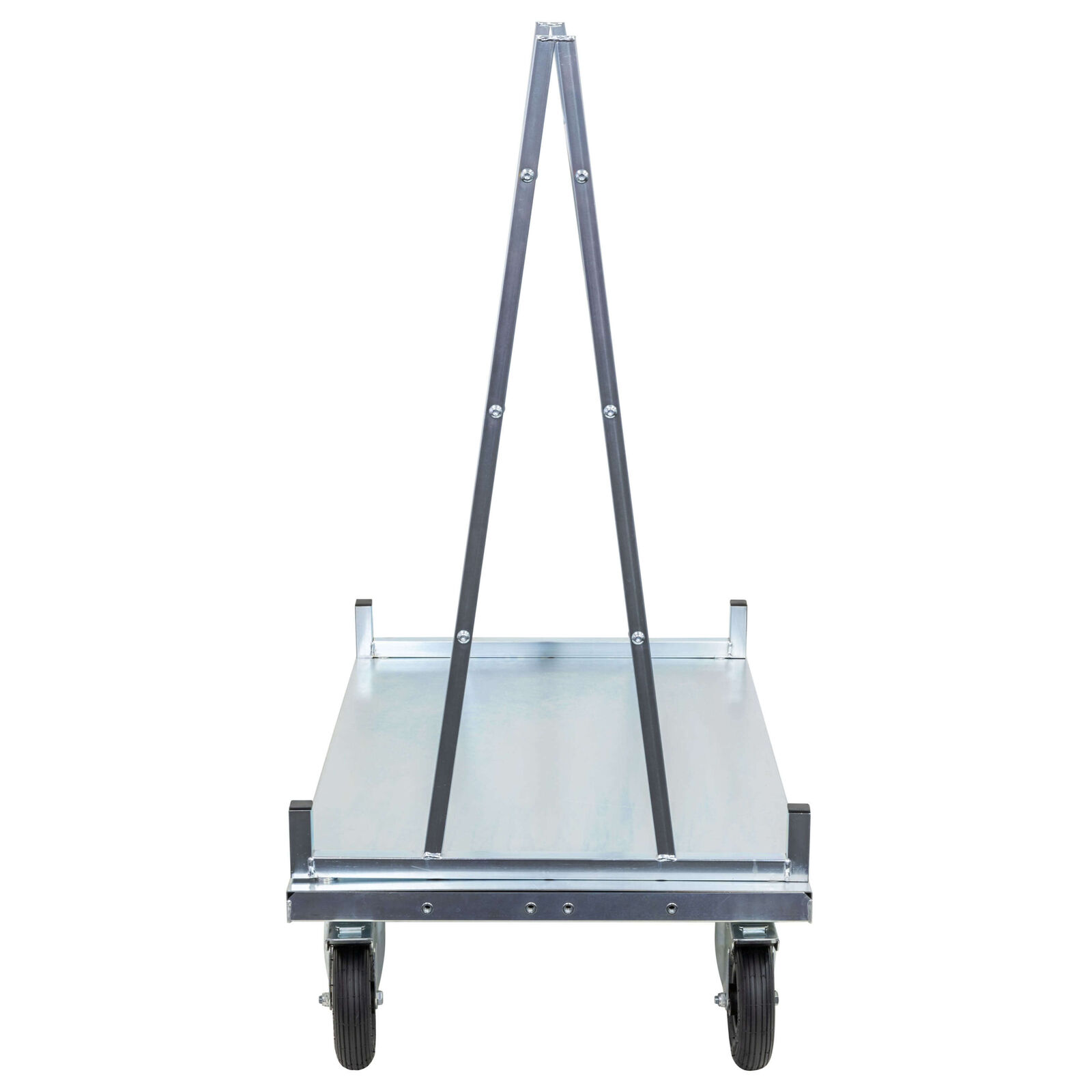

A Frame Panel Cart (Pneumatic Castors) A Frame Panel Cart (Pneumatic Castors)

A Frame Panel Cart (Pneumatic Castors)

Product Code: M1296

  • Zinc Finish
  • Pneumatic Wheels - 2 x fixed, 2 x swivel with brakes
  • Range of accessories available to suit
  • Load Capacity: 300kg
  • Wheel Size: 200mm
  • Base Height: 280mm
  • Overall Size (LxWxH): 1250x700x1390mm
  • Unit Weight: 53kg
 A Frame Panel Cart (Pneumatic Castors) M1296
View Details

$713.00

-
+
In StockIn Stock
In StockIn Stock

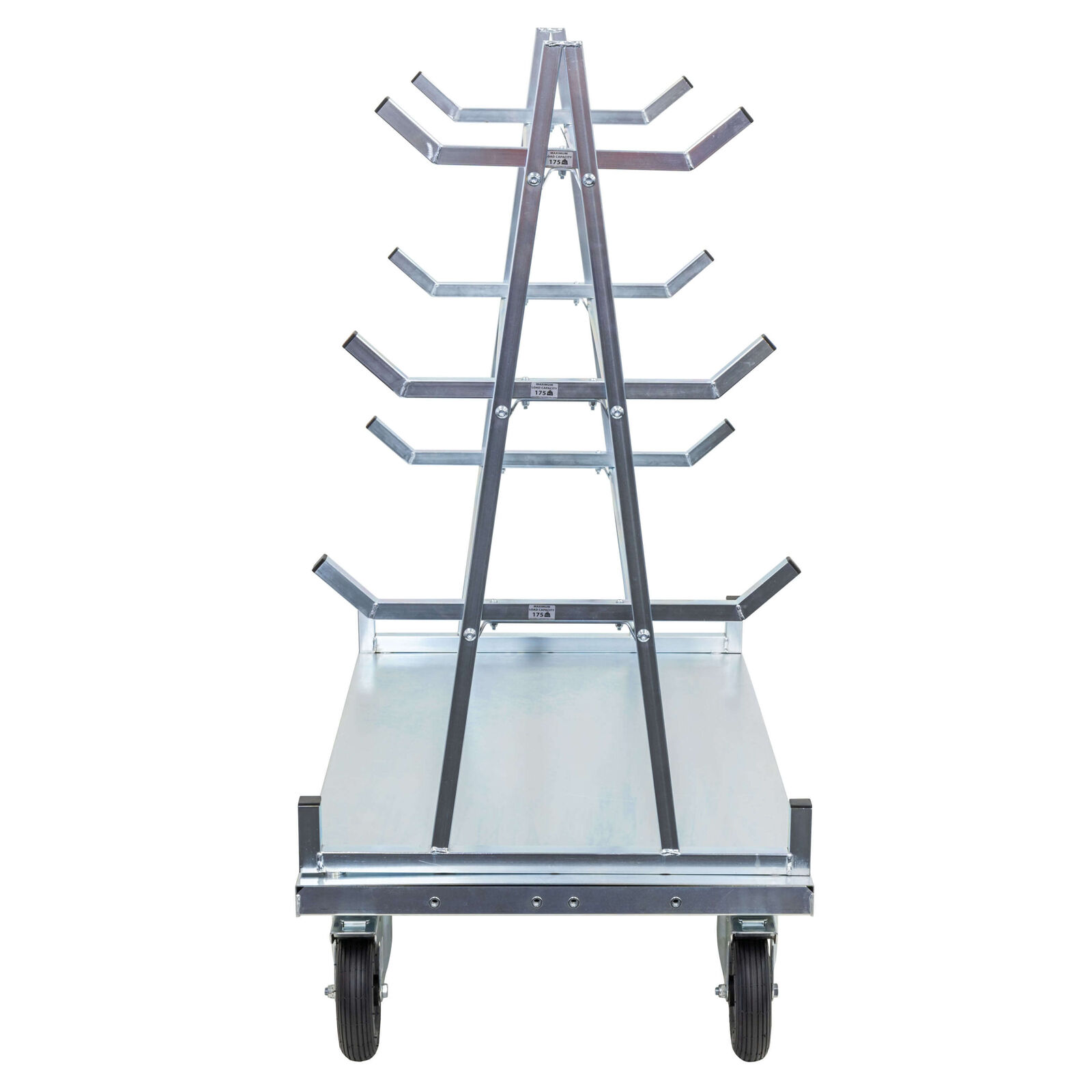

A Frame Panel Cart with Trestle Racks (Pneumatic Castors) A Frame Panel Cart with Trestle Racks (Pneumatic Castors)

A Frame Panel Cart with Trestle Racks (Pneumatic Castors)

Product Code: M1296K

  • Supplied with trestle racks, so that long product can be stored at different heights
  • Zinc Finish
  • Pneumatic Wheels - 2 x fixed, 2 x swivel with brakes
  • Range of accessories available to suit
  • Load Capacity: 300kg
  • Wheel Size: 200mm
  • Base Height: 280mm
  • Overall Size (LxWxH): 1250x700x1390mm
  • Unit Weight: 68kg
 A Frame Panel Cart with Trestle Racks (Pneumatic Castors) M1296K
View Details

$795.00

-
+
In StockIn Stock
In StockIn Stock
Entry Rollers to suit Entry Rollers to suit

Entry Rollers to suit

Product Code: M1291

  • Rollers allow heavy or bulky panels to glide onto the cart without needing to lift them fully
  • Unit Weight: 3kg
 Entry Rollers to suit M1291
View Details

$69.00 /Set

-
+
In StockIn Stock
In StockIn Stock
Fork Pockets to suit Fork Pockets to suit

Fork Pockets to suit

Product Code: M1916

  • Sold as a Pair
  • Zinc finish
  • Overall Dimensions: 260x126x32mm /pc
  • Internal Opening Dimensions: 238x84mm
  • Fork Pocket centre when mounted on 1910: 630mm
  • Unit Weight: 0.70 kg /pc
 Fork Pockets to suit M1916
View Details

$65.00 /Set

-
+
In StockIn Stock
In StockIn Stock
Trolley Towing Set to suit Trolley Towing Set to suit

Trolley Towing Set to suit

Product Code: M1920

  • Zinc finish
  • Towing capacity: 200kg
  • Hitch
  • Overall Dimensions: 80x65x225mm
  • ⌀20mm  Pin
  • Finish: Zinc
  • Unit Weight: 1.18kg
  • Hook
  • Overall Dimensions: 350x37x346mm
  • ⌀22mm  Bore
  • Unit Weight: 1.66kg
 Trolley Towing Set to suit M1920
View Details

$120.00

-
+
In StockIn Stock
In StockIn Stock

Scroll left to view details

Please for pricing on bulk quantity purchases

PRICES EXCL. GST
Product Dimensions / Specifications
  • The A frame panel trolley is ideal for transporting bulky items
  • Optional trestle rack version available, so that long product can be stored at different heights
  • Zinc Finish
  • Pneumatic Wheels - 2 x fixed, 2 x swivel with brakes
  • Range of accessories available to suit
  • Load Capacity: 300kg
  • Wheel Size: 200mm
  • Base Height: 280mm
  • Overall Size (LxWxH): 1250x700x1390mm
  • M1296 Unit Weight: 53kg
  • M1296K Unit Weight: 68kg






Shipping Calculator
Some extra freight charges may apply, especially for extra bulky goods or deliveries to remote areas. We will contact you prior to shipping your order if this applies.
For large orders we may able to lower shipping costs - please contact us to confirm.

Please Note - We are not able to deliver goods to a PO Box address.

Areas Not Serviced By Our Regular Carriers
Some locations & postcodes may be out of the area serviced by our regular carriers, even if they are not classified as a remote area. For these areas, an extra charge will need to be added to the amount that our ‘Shipping Calculator’ comes up with. We will contact you if this is the case.

Deliveries to a Non-Business Address
Extra charges may apply if you need your order delivered to a home or private address. Please contact us to obtain a freight estimate if this is required.

Hand or Tailgate Deliveries
Any shipment that weighs over 25kg will need to be unloaded by a forklift or fork stacker. If there is no forklift available extra charges may apply for hand or tailgate unloads. Please contact us to obtain a freight estimate if this is required.

Deliveries During Non-Business Hours
Extra charges will apply for deliveries on a weekend, public holiday or outside usual business hours. Please contact us to obtain a freight estimate if this is required.

Redelivery Fee
Most carriers will charge a redelivery fee if there was no one on site when they first attempted to deliver the goods. Any charges of this nature will be passed onto the customer.

Delivery of Goods to an Unattended Address
If you have instructed us to leave your order at an unattended address, we or the carrier will not be held responsible if the goods go missing.

International Orders
We can ship our products to most areas around the globe. Please contact us for a freight quote or we can ship on your nominated carrier.

Estimated Delivery Dates
If we have provided you with an estimated delivery date, please be aware that this can change due to unforeseen circumstances and we will not accept any responsibility for late deliveries.

Goods Lost in Transit
Please be aware that we cannot offer a replacement for goods lost in transit until the courier company has actually specified that the goods have been lost. This can take up to 1 month.

Please Note: For product user manuals, installation and/or assembly instructions please click on the red button below and fill in your details.


Click here to download a PDF Brochure Click here to fill in the form to request your required document

The A Frame Panel Cart with Pneumatic Wheels is designed for efficiently transporting bulky items. Here's a breakdown of its specifications:

Ideal for Bulky Items: The A-frame design of the panel cart makes it well-suited for transporting large and bulky items, ensuring stability and support during transport.

Optional Trestle Racks: Optional trestle racks are available, allowing long products to be stored at different heights for increased versatility and organization.

Zinc Finish: The panel cart features a zinc finish, providing corrosion resistance and durability, suitable for use in various environments.

Pneumatic Wheels: Equipped with pneumatic wheels, including 2 fixed and 2 swivel wheels with brakes, ensuring smooth movement and maneuverability while providing shock absorption, especially on uneven surfaces.

  • Load Capacity: The panel cart boasts a generous load capacity of 1000kg, making it suitable for handling heavy loads with ease.
  • Wheel Size: The pneumatic wheels have a diameter of 200mm, offering stability and mobility across different surfaces.
  • Base Height: The base of the cart is positioned at a height of 280mm, providing ample clearance for loading and unloading bulky items.
  • Overall Dimensions: The overall dimensions of the panel cart are 1250x700x1390mm (LxWxH), providing a spacious platform for transporting large items.
  • Unit Weight: The M1296 model has a unit weight of 53kg, while the M1296K model, which includes additional accessories, has a unit weight of 68kg, ensuring stability and durability during use.

Range of Accessories: A range of accessories is available to suit various needs and requirements, offering customization options for enhanced functionality.

Overall, the A Frame Panel Cart with Pneumatic Wheels offers durability, stability, and ease of use, making it an ideal solution for transporting bulky items in industrial and commercial settings. The Panel Carts don't end here, MHA supply a full range to assist with transporting large items that in turn provides safe materials handling.
